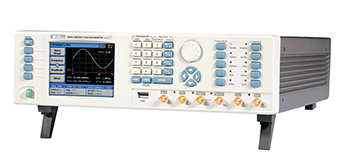

WS8352 350MHz 2-Ch Arbitrary Function Generator

Tabor’s WS8352 is a 350MHz dual channel generator with the functionality of a function, arbitrary, modulation and pulse/pattern generator, all in one easy to use, high performance, compact stand alone bench top, which enables engineers to test analog, digital and mixed signals devices with a single instrument.

• Dual-channel Arbitrary / Pulse / Function Generator
• Differential outputs configured as separate or synchronized
• 350MHz sine and 250MHz square waves
• 14-Bit, 2GS/s, 512Kpoint arbitrary waveforms
• 4Vp-p into 50Ω (8Vp-p differential), double into open circuit
• 10 built-in waveforms: sine, square, pulse, triangle, ramp (saw-tooth), sinc, gaussian, exponential , DC, repetitive or white noise
• AM, FM, FSK, PSK and Sweep modulations
• Continuous, triggered, gate and burst modes
• Powerful pulse/pattern composer for analog, digital and mixed signals
• User friendly 4” color LCD display
• Remote control through LAN, USB and GPIB
• Store/recall capability on disk-on-key or 1GB internal memory
• Free ArbConnection software, IVI and MATLAB drivers
• LXI Class C compliant
