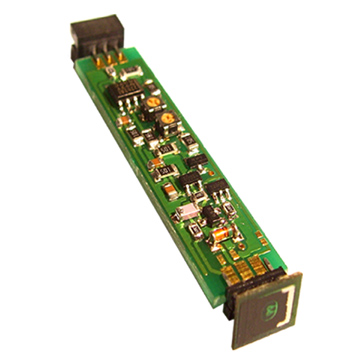

UPSI M-TUTA.34 Low Power Linear Analog ProbeManufacturer: UPSI Price: $84.85Low Power Linear Analog probe Relative humidity from 0 to 100% RH
Ambient temperature (AT) from -40°C to 85°C Humidity channel Voltage Output 0-5V Temperature channel Voltage Output 0-5V RH response time from 0.3s to 50s (Rx to Lx suffix) RH Linearity error = 1,5% RH AT Linearity error "<" 0,2°C Supply voltage : 6V to 24V (option 40V) Supply current : 0,12 mA (0,7 mW) Max. Current drive : ±2 mA Standard dimensions L W H : 60 x 13 x 11 mm
|
