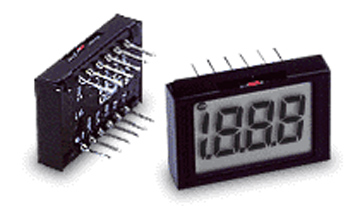

OEM 1B 3A½ Digit LCD Voltmeter

Manufacturer: Lascar Electronics

Price: $26.36

OEM 1B

8mm (0.31") Digit Height
200mV Full Scale Reading
150uA @ 7.5 to 14V
Auto-zero and Auto-polarity
Selectable Decimal Points

The OEM 1B uses the latest miniaturization techniques to produce a very compact 3½ digit LCD voltmeter. It is designed to be a drop-in component in most medium and high volume applications, ranging from personal instrumentation and integral sensor indicators to measurement probes. The meter features 8mm (0.31") digit height, 3 decimal points, auto-polarity, auto-zero, 200mV full scale reading and a very low current consumption. Connection to the module is via two rows of pins.

This is a popular part, normally stocked in high quantity and suitable for new designs.

Specification	Min.	Typ.	Max.	Unit
Accuracy (overall error) *		0.1		% (±1 count)
Linearity			±1	count
Sample rate		2.5		samples/sec
Operating temperature range	0		50	°C
Temperature stability		100		ppm/°C
Supply voltage (V+ to V-)	7.5	9	14**	V d.c.
Supply current		150		uA
Input leakage current (Vin = 0V)		1	10	pA

* To ensure maximum accuracy, re-calibrate periodically
** Operation of the meter beyond maximum supply voltage rating may cause permanent damage to the meter.

Datasheet
