16 by 2 Serial/I2C LCD w/ SW Controlled Backlight (CLCD216-G)

Manufacturer: Comfile

16 by 2 Serial/I2C LCD w/ Software Controlled Backlight

Green Liquid Crystal Display
16 by 2 Character LCD
CuNET or I2C (4pin) and RS232 Communication(3 or 4pin) (Baud rates for RS232: 2400, 4800, 9600, 14400, 19200, 38400, 57600, 115200, 8-N-1)
LED Backlight
Easy-to-use native CUBLOC BASIC commands.
Size (W,H) : 2.54" x 0.54" (64.5 x 13.8 mm)

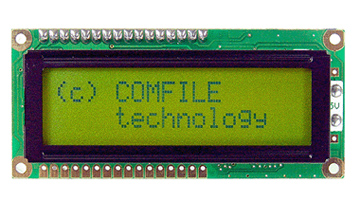

[Source Code for LCD screen above]

Const Device=CB280

Set Display 2,0,0,128

Cls 'Clear screen
Csroff 'Cursor Off

Locate 0,0
Print "(c)COMFILE"
Locate 4,1
Print "technology"

8 lines total

SUBJECT	FILE NAME	FILE SIZE
CLCD User Manual	clcd.pdf	151K
