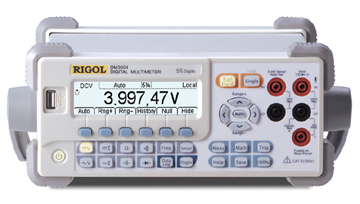

DM3058 5 1/2 Digit DVM w USB Lan and GP-IB
Manufacturer: Rigol
Price: $750.00
Calibration certificate included.
Application
- Manufacturing Test
- Quality Test
- Laboratory
- Scientific research and Education
- Maintenance
Advanced Features
- True 5½ digits resolution (240,000-count)
- 120 rdgs/s maximum sample rate
- Up to 0.015% accuracy of DC Voltage per year
- Command compatibility: Replace mainstream DMM randomly via the compatibility of their command
- Patented Any Sensor test capability
- 256×64 pixels LCD display, to support multi-display and screen menu
- Interfaces: GPIB, LANiLXI-C Class), RS-232, USB Host and USB Device
**Rigol oscilloscopes carry a 3 year limited warranty.
| Specifications |
| Measurement Function |
Range |
Frequency Range/ Testing Current |
Accuracy:1 year ± ( % of reading + % of range) |
| DC Voltage |
200mV ∼ 1000V |
|
0.015 + 0.003 |
| DC Current |
200uA ∼ 10A |
|
0.020 + 0.005 |
| AC Voltage (RMS) |
200mV ∼ 750V |
20Hz ∼ 100kHz |
0.20 + 0.05 |
| AC Current (RMS) |
20mA ∼ 10A |
20Hz ∼ 10kHz |
0.30 + 0.06 |
Resistance
(2-wire and 4-wire) |
200Ω ∼ 100MΩ |
|
0.020 + 0.003 |
| Capacitance |
2nF ∼ 10000uF |
|
1.0 + 0.5 |
| Diode test |
2.4V |
1mA |
0.05 + 0.01 |
| Frequency and Period |
200mV ∼ 750V |
10Hz ∼ 1MHz |
0.01 + 0.003 |
| 20mA ∼ 10A |
10Hz ∼ 100kHz |
0.01 + 0.003 |
| Continuity |
2KΩ |
1mA |
0.05 + 0.01 |
| noteFAll the indicators are the typical value under standard test situation |
| Other parameters |
| Measurement Function |
DC Voltage, DC Current, AC Voltage(RMS), AC Current(RMS), Resistance(2-wire and 4-wire), Capacitance, Diodes test, Frequency and Period, Continuity, short current, any sensor |
| Math |
“Pass/Fail” Limit Test, Standard Deviation, Histogram, Relatively, Null, Max/Min/Avg, dBm, dB |
| Other Functions |
Built-in 10 groups of configuration storage,10 groups of configuration storage of any sensor, 2048 historical reading data record and check, 10 groups of historical datum storage, Exterior trigger input and VMC output, Reading hold, Single trigger |
| Display Characteristic |
Multi-display, menu, multi-language help and waveform display |
| Security |
CAT II 600VCCAT I 1000V. Contaminated Class 2 |
| Shock and Vibration |
MIL-T-28800, type III, class 5isinej |
| Power Supply |
110/220V ±20%, 45 ∼ 65Hz, 20W Max |
This product supersedes the DM3051, DM3052, DM3054, DM3061, DM3062 and DM3064.
