5.7

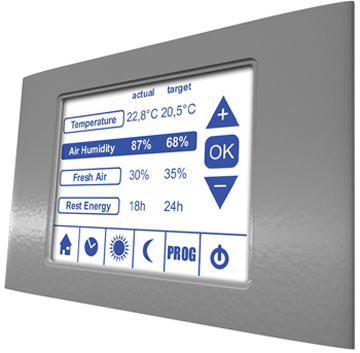

5.7" 1/4 VGA Touchscreen Computer (TP1000)

Manufacturer: Wilke

Price: $785.12

Instruments, machines and devices with touch screen panels are classified as innovative and technologically leading by the market. Touch Screens signalize expertise and a high quality-rating.

Increase the value of your projects and products while saving money. Actually touchpanel solutions are even more profitable than conventional text-lcd + keyboard solutions with a higher rating for the final product at the same time.

Applications:
  • Touchpanel Terminals
  • Operating Units
  • Laboratory Apparatus
  • Machine Controls
  • Vending Machines
  • Smart Instruments
  • Self Service Devices
  • Measurement Devices... etc.
Features:
  • 1/4 VGA monochrome 5,7" 320x240 Pixel
  • Blue-White or Black-White
  • Analog Touchpanel 120x90 mm
  • High Speed Multitasking
  • Fast Boot < 1 sec
  • Fast Vector- and Pixel-Graphics
  • Exchangeable 16 Bit and 32 Bit Multitasking Computer-Modules
  • 0,5 - 4 Mbyte FLASH for programs and data
  • 0,5 - 1 Mbyte SRAM with Backup Input
  • sufficient memory even for large-scale programs with more than 50,000 Codelines + Data
  • RS232, RS485 / RS422, I2C, SPI
  • Ethernet, USB, CAN, I2C-Bus
  • battery-buffered RTC
  • Watchdog
  • In-Field programmable
  • internal / external Beeper
  • 2 internal / external Control-LEDs
  • switchable LED Backlight
  • XBus Expansion-Bus for any I/O-Expansions
  • clamping bars pluggable in groups
  • Power Supply 8V ... 30VDC

Info & Downloads

Datasheet (PDF)

Connect EP Modules

Schematic (PDF)

Manual (PDF)
