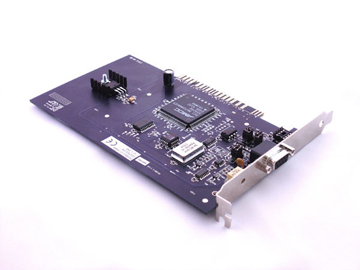

Calibre PCI90/C PCI-card I2C-Bus communications adapter for 5V

Manufacturer: Calibre

Price: $399.00

PCI90 - 5V I2C-Bus Comms Adapter for PCI-bus PCs

The PCI90 is a highly flexible, low-cost I2C-Bus communications adapter for use with I2C-Bus systems running on 5V supplies. Alternatively, for low-voltage systems the PCI93LV is available for use between 2 and 6V so is ideally suited for use in low-power 3V applications. The PCI90 is a PCI-based version of Calibre's well-proven ICA90 I2C-Bus Communications Adapter which is now widely regarded as the industry standard tool and is currently in use by hundreds of companies large and small.

The package supplied includes the PCI card, a comprehensive user manual, Windows 95/98//2000/NT4 and XP device drivers to enable users to integrate the product with their own software applications and a real-time I2C-Bus monitor program.

Ready-to-run WINI2C software for immediate control and development of I2C-Bus systems is also
available as an optional extra.

Features

• True I2C Compatibility

• Operates as Master, Slave or Real-Time Monitor

• Fits any PC with free PCI slot

• Win95/98/2000/NT4 & XP device drivers and monitor software included

• I2C Configuration through software

• I2C Connection via 9 way D socket

• +5V power available on I2C connector

• WINI2C/PCI application software available as an optional extra

The PCI90 is based around the Philips PCF854 I2C-Bus controller to support the full I2C communications protocol and plugs into any available PCI slot in your PC. Bus termination and protection are all link selectable while I2C configuration and all other protocol functions are software controllable.

Downloads for this Product

		Datasheet for the PCI90/C communication adapter

		Critical driver update for using PCI90 with WinXP SP2.

		Critical driver update for using PCI90 with W2K SP2.
