Dataman T51Pro MCS51 / AVR ISP Programmer

    Dataman T51Pro MCS51 / AVR ISP Programmer

    Manufacturer: Dataman

    Price: $395.00

    Note:  Adapter modules for the Dataman programmers are not returnable for refund or credit except where a unit is found to be defective and the seller is immediately contacted for replacement.

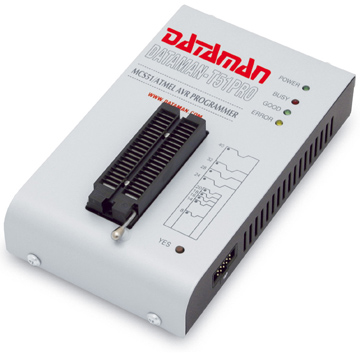

    40-pin MCS51 and AVR chip programmer with ISP capabilities and USB 2.0 connectivity. Dataman T51Pro is a small, fast and powerful programmer designed for a huge range of MCS51 and AVR microcontrollers.

    The T51Pro is built to meet the demands of development labs and field engineers for specialized programming.



    General

    • 40 powerful TTL pindrivers provide H/L/pull_up/pull_down and read capability for each pin of socket. Advanced pindrivers incorporate high-quality high-speed circuitry to deliver signals without overshoot or ground bounce for all supported devices. Pin drivers operate down to 1.8V so you'll be ready to program the full range of today's advanced low-voltage devices.
    • The programmer performs device insertion test and contact check before it programs each device. These capabilities, supported by signature-byte check help prevent chip damage due to operator error.
    • T51Pro programmer performs programming verification at the marginal level of supply voltage, which improves programming yield and guarantees long data retention.
    • Easily upgradeable to the 40Pro programmer
    • Various socket converters are available to handle device in PLCC, SOIC, SSOP, TSSOP, TSOP and other packages.

    Base Unit (DAC)

    • Two D/A converters for VCCP and VPP, controllable rise and fall time
    • VCCP range 2V..7V/350mA
    • VPP range 2V..25V/200mA
    • USB 2.0/1.1 compatible interface
    • Auto calibration
    • Self test capability

    ZIF Socket

    • 40-pin DIL ZIF (Zero Insertion Force) socket accepts both 300/600 mil devices up to 40-pins
    • Pindriver: 40 TTL pindrivers, specialized GND/VCC/VPP pindriver for MCS51 and AVR devices
    • Spare GND, VCC and VPP driver, which add additional made-by-wire GND/VCC/VPP pin capability for future devices
    • FPGA based TTL driver provides H, L, CLK, pull-up, pull-down on all pindriver pins; level H selectable from 1.8V up to 5V
    • Continuity test: each pin is tested before every programming operation

    ISP Connector

    • 10-pin male type with miss insertion lock
    • 6 TTL pindrivers, provides H, L, CLK, pull-up, pull-down; level H selectable from 1.8V up to 5V to handle all (low-voltage including) devices
    • 1x VCCP voltage (range 2V..7V/100mA) and 1x VPP voltage (range 2V..25V/50mA)
    • Programmed chip voltage (VCCP) with both source/sink capability and voltage sense



    User Interface

    • Programmer is driven by an easy-to-use control program with pull-down menus, hot keys and on-line help. Selecting of device is performed by its class, by manufacturer or simply by typing a fragment of vendor name and/or part number.
    • Standard device-related commands (read, blank check, program, verify, erase) are enhanced by some test functions (insertion test, signature-byte check), and some special functions (autoincrement).
    • All known data formats are supported. Automatic file format detection and conversion during loading of file.
    • The versatile auto-increment function allows each programmed device to be assigned an individual or incrementing serial number. This function also enables the operator to read serial numbers or device identification signatures from a file.
    • The software also provides extensive information about programmable devices including detailed drawings of all available packages. The software also provides explanations of chip labelling (prefixes and suffixes) for each of the supported chips.
    • The software provides full information for ISP implementation: Description of ISP connector pins for currently selected chip, recommended target design around in-circuit programmed chip and other necessary information.
    • Keeping your programmer software up to date can be a costly business with some programmers. Dataman offers completely FREE software updates whenever you need them. The latest software is always available from our website.

    Device Support

    The Dataman T51Pro supports over 12,000 of the most popular MCS51 and AVR devices in use today - with future devices being added monthly. Dataman T51Pro coverage includes the following device types:

    ZIF socket

    • Microcontrollers MCS51 series: 87Cxxx, 87LVxx, 89Cxxx, 89Sxxx, 89LVxxx, LPC series from Atmel, Atmel W&M, Intel, Philips, SST, Winbond, ... 8-40 pins
    • Microcontrollers Atmel AVR: ATtiny, AT90Sxxx, ATmega series (parallel and serial mode), 8-40 pins
    • Serial E(E)PROM: 24Cxxx, 24Fxxx, 25Cxxx, 59Cxxx, 85xxx, 93Cxxx series

    ISP connector

    • Microcontrollers Atmel: AT89Sxxx, AT90Sxxxx, ATtiny, ATmega series
    • Microcontrollers Philips: LPC series



    Device Lists


    Supported Device List Version 2.96 109.6 KB

    Software


    Windows 2000/2003/

    XP/Vista/7/8

    Version 2.96 33.8 MB

    Manuals


    Manual ©2009 Revision 2.84 MB

    Specifications


    Specifications ©2007 Revision 163.92 KB
