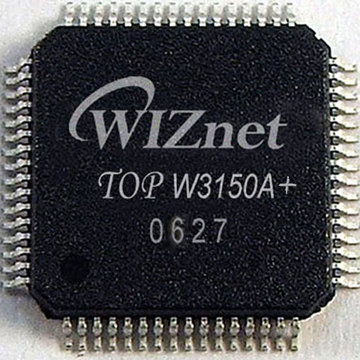

W3150A+ TCP/IP(RoHS)

Manufacturer: Wiznet

WIZnet Chip (Fully Hardwired TCP/IP stack)

Performance Benefits	Line-Speed Data transmission by hardwired logic
Implementation Benefits	Easy control way like memory
Cost Benefits	No OS required
Application Benefits	- Internet Controller : Easy embedded to controllers or data collectors with low-end MCUs - Internet Accelerator : Reducing Jitter with fixed processing time by hardware. Enhancing video and voice quality.

Block Diagram

Features

Support Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IGMP, IPv4, ARP, PPPoE, Ethernet
Support ADSL connection (with support PPPoE Protocol with PAP/CHAP Authentication mode)
Supports 4 independent sockets simultaneously
Not support IP Fragmentation
Standard MII Interface for Ethernet-PHY chip
Supports 10BaseT/100BaseTX
Supports full-duplex mode
Internal 16Kbytes Memory for Tx/Rx Buffers
0.18 µm CMOS technology
3.3V operation with 5V I/O signal tolerance
Small 64 Pin LQFP Package
Lead-Free Package
Support Serial Peripheral Interface(SPI MODE 0)

Difference between W3150A and W3150A+

W3150A+	W3150A
Three MCU interface (Direct, Indirect and SPI)	Only two interface possible (Direct & Indirect)
Pin no.33 used for SPI enable	Pin no.33 used for PCLOCK
Interrupt Register clear by writing on particular bit	Interrupt Register clear by reading the register
Add "Send_OK" interrupt is added when send operation is complete	No interrrupt when send operation is complete
No delayed ACK mode supported in TCP	Not possible
UDP zero checksum is removed in TX	UDP zero checksum is there in TX and RX both

TITLE	LANGUAGE	FILE

SPI Guide for W3150A+ and W5100	English

W5100 Layout Guide	English

W3150A_W3150A+ AutoDetection Device Driver	English

W3150A+ Testing Report - Temperature	English

W3150A+ driver. ver. 1.0.6	English

W3150A+ Application Note for Multicasting	English

W3150A+ Application Note - How to use W3150A+ for ADSL	English

W3150A+ Reference Schematic	English

Materials for existing W3150A users	English

W3150A+ Datasheet V2.0.4	English

DHCP code with IAR compiler for W3150A	English

DNS Application note for W3150A	English

DHCP Application note for W3150A	English

W3150A Errata sheet (Language: KOR)	Korean

W3150A Driver	English

W3150A Brochure	English

W3150A Errata sheet (Language: ENG)	English

W3150A Datasheet	English

W3150A Reference schematic	English
