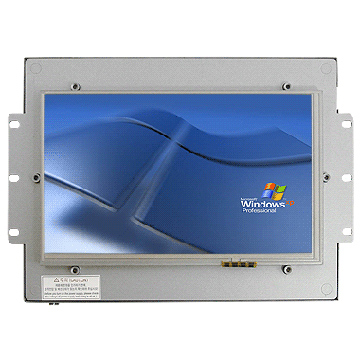

CUPC-P70 7" WIN XP Touch Controller (OS Excluded)

CuPC-P70 is a Windows XP-based Touch Controller with a 7inch (800x480) color TFT LCD display with a touch panel interface and a waterproof metal front panel. CuPC-70 features a 500MHz AMD Geode LX800 with 512MB DDR RAM and 4GB solid state FLASH HDD memory. Interfaces provided include: 10/100 Base-T Ethernet, 3 x USB2.0 ports, 3 x RS232, RS485 or RS232, RS485, PS/2 keyboard port, PS/2 mouse port, SATA port, speaker out port, MIC in port. There’s also an additional VGA CRT output port. Steady-state power requirement is <12W from 12VDC, making it ideal for automotive applications. A +12VDC @ 4.0A supply is recommended. CuPC-70 weighs 1.5lb and is designed to operate from 0degC to 50degC. It also features an SD card slot. It can be supplied as a basic unit without an operating system or pre-installed with a copy of Windows XP embedded or XP Pro. Size (WHD) 8.0” x 5.8” x 1.5”.

Windows XP Touch Controller   NOTE:  Requires 12VDC 3.3A Power Supply (not included)  Proccessor CUPC-P70 LCD  7inch WIDE TFT Resolution  800 x 480 TOUCH PANEL  Analog Resistive / Capacitive TOUCH controller  YES OS (option)  Windows XP embedded,  Windows pro CPU  AMD Geode LX800 CLOCK SPEED  500MHz RAM  512MB DDR VGA  AMD Geode LX800 / VGA 10/100 Base-T Ethernet  1 IDE interface  1 x 44pin / 1 x 40pin HDD  4GB FLASH HDD SATA  1 E-SATA  1 USB  3 RS232  3 RS485 or RS232  1 RS485  1 SD Card slot  1 PS2n Port  2 SOUND  1 MIC  1 PCI, PCMCIA  NO Power  12VDC LCD Size  91.44 x 152.4 mm Size (WHD)  205 x 146 x 36 mm

SUBJECT FILE NAME FILE SIZE CUPC-P70/80/90/100 User Manual cupc_p1xx_usermanual.pdf 3.4M CUPC-P70/80/90/100 hardware Manual cupcp100_hwmanual.pdf 2.1M CUPC-P70 Driver cupc_p70_driver.zip 8.66M CUPC-P70 Panel cutout cupc_p70_cutout.pdf 29K
