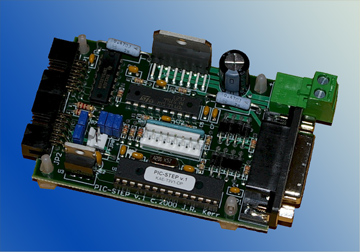

PIC-STEP Stepper Motor Control Board (KAE-T3V1-BDV1)

PIC-STEP Motion Control Board

Motor Type: 2-Phase Stepper (4, 6 or 8 wire)
Driver Ratings: 2A per phase, 7.5-46vdc
Controller chip: PIC-STEP

Board Datasheet      Controller Chip Datasheet

Specifications

• Thermally protected bipolar chopper driver with full and half step modes
• Speeds up to 50,000 steps per second
• Trapezoidal and velocity profiling modes with 32 bit position register
• Independent, software controllable running and holding current settings
• Analog input for motor temperature sensing
• Limit switch inputs, e-stop input, plus auxiliary inputs and outputs
• May be used with external microstepping drivers
• 4-wire RS485 communications interface can be connect to additional controllers (up to 32 total)
• Complete documentation and example software available
• Nominal size: 2" x 3"


The PIC-STEP Motion Control Board is an integrated controller which includes both high-speed indexer functions and a power driver. It integrates seamlessly with our servo controller boards to allow you to easily control systems with both servo motors and steppers.The PIC-STEP Motion Control Board is supported by the same Windows test programs and software libraries used for our servo controllers.

Manufacturer Part Number:  KAE-T3V1-BDV1
