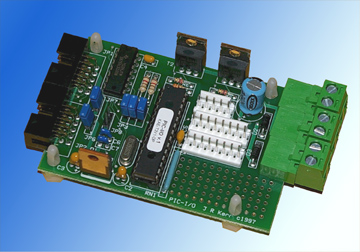

PIC-I/O General Purpose I/O Controller (KAE-T2V1-BDV1)

PIC-I/O General Purpose I/O Controller
Controller Type: Digital & Analog I/O
Controller chip: PIC-I/O

Board Data Sheet    Controller Chip Data Sheet

Specifications

• 12 digital I/O pins programmable as inputs or outputs
• Three 8-bit analog inputs
• Two PWM output channels with high current (5 amp) drivers
• One counter/timer channel
• Prototyping area for adding components
• 4-wire RS485 communications interface can be connect to additional controllers (up to 32 total)
• Complete documentation and example software available
• Nominal size: 2" x 3"

The PIC-I/O General Purpose I/O Controller allow you to add additional general purpose I/O capabilities to your motion control system. With a combination of our motion control boards and PIC-I/O controllers you can create complete machine control systems with no additional hardware. The PIC-I/O General Purpose I/O Controller is supported by the same Windows test programs and software libraries used for our servo controllers.

Manufacturer Part Number:  KAE-T2V1-BDV1
