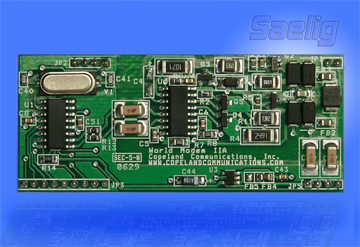

World Modem Secure 3.3V 2.4K Serial

WORLD MODEM SECURE

The CC-2401K2 World Modem™ Secure is a compact integrated 2400 baud ITU-V.22bis modem featuring SocketModemâ™ compatibility.The modem features a transformer-less DAA meeting global telephone system requirements, no electromechanical components and flexible DSP data pump.The modem supports serial host communications via flexible internal UART. The modem conforms to the industry standard SocketModem™ mechanical and interface specifications.In addition to the features it has in common with the other World Modem™ family products, the CC-2401 also supports SIA and other security protocols and has programmable general purpose IO.

Features

• World Compatible DAA
• 3.3 Volt model (3.3V interface with 5 volt tolerant IO)
  5 Volt-only version available - call for details
• Designed to withstand 5 kV longitudinal surges
• Serial controller interface
• 300 to 2400 baud
• Modem formats:
  V.21, V.22, V.22bis, V.23, Bell 103, Bell 212
• Fast Connect and V.23 reversing
• Up to five general purpose IO pins
• SIA and other security protocols
• Parallel phone and line in use detection
• Overcurrent protection
• Commercial temperature
• Global Caller ID
• Call progress support
• Low profile
• 20mA operating current
• Overcurrent detection
• FCC Parts 15 & 68 approved
• CE Certified
• TBR 21 approved
• Conformal coating available
• Small Footprint - 1.05" X 2.54"

Documentation

CC-2401K2 Family Data Sheet

CC-xxK Evaluation Kit User's Guide

Manufacturer Part Number:  CC-2401K2A-CS RoHS
