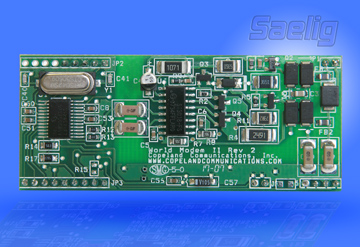

World Modem II 3.3V 56K Serial

The World Modem II™ is a compact integrated 2400 to 56K baud ITU-V.22bis modem featuring SocketModem™ compatibility. The modem features a transformer-less DAA meeting global telephone system requirements, no electromechanical components and flexible DSPdata pump. The modem supports serial host communications via flexible internal UART. The modem conforms to the industry standard SocketModem™ mechanical and interface specifications.

Features

• World Compatible DAA
• 3.3 Volt model (3.3V interface with 5 volt tolerant IO)
  5 Volt-only version available - call for details
• Designed to withstand 5 kV longitudinal surges
• Serial or parallel controller interface
• 300 to 56K baud
• Modem formats:
  V.22bis, V.22, V.23, Bell 103, V.21(CC-2404K2)
  V.32bis, V.22, V.23, Bell 212A, Bell 103(CC-14.4K2)
  V.34, V.32bis, V.22, V.23, Bell 212A, Bell 103 (CC-33K2)
  V90, V.34, V.32bis, V.23, V.22bis, Bell 212A, Bell 103 (CC-56K2)
  V.92, V.90, V.34, V.32bis, V.23, V.22bis, Bell212A, Bell 103 (CC-93K2)
• Compression and Error Correction:
  V.42, V.42bis, MNP4, MNP5
• Parallel phone and line in use detection
• Overcurrent protection
• Commercial or Industrial temperature
• Global Caller ID
• Firmware upgradeable
• Call progress support
• Low profile
• 35mA operating current
• Overcurrent detection
• FCC Parts 15 & 68 approved
• EN55022 approved
• TBR 21 approved
• Conformal coating available
• Small Footprint - 1.05" X 2.54"

Documentation

CC-xxK2 Family Data Sheet

CC-xxK Evaluation Kit User's Guide

Manufacturer Part Number:  CC-56K2-CSR
