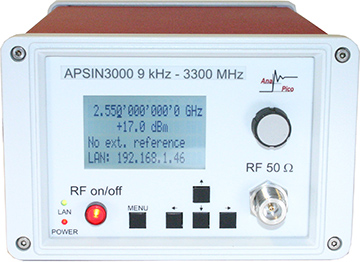

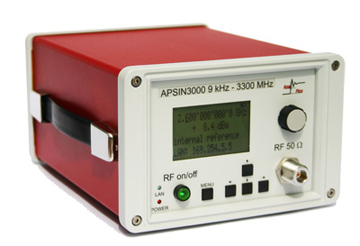

APSIN3000 with HC Option

9 kHz – 3400 MHz CW Signal Generator with Hardware User Interface

Key Specifications:

• 9 kHz to 3.4 GHz in 0.001 Hz resolution
• -100 to +16 dBm in 0.1 dB resolution
• -128 dBc/Hz at 1 GHz carrier (20 kHz offs)
• 1 ms switching time
• DC Power only 12 Watts
• Initial Accuracy: +/- 100 ppb maximum
• Typical Accuracy: ~ +/- 10 ppb
• Temperature Stability: +/- 100 ppb (0 to +50 degrees C)
• Ageing: 0.5 ppm maximum, first year of operation
• Weight: 2.5 kgs

Features & Applications:

• Portable with Internal Battery Option
• High Dynamic Range for RX/TX
• characterization and EMC testing
• Extensive Trigger Capabilities for ATE
• Programming via standard SCPI or GUI
• AM; FM, pulse Modulation
• Lock to variable external reference
