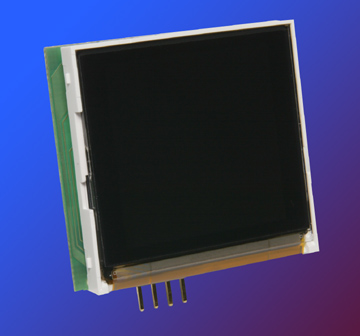

The microLCD (μLCD-128) is a compact and cost effective all in one ˜SMART" LCD Display with an embedded graphics controller that will deliver ˜stand-alone" functionality to your project. The ˜simple to use" embedded commands not only control background color but can produce text in a variety of sizes as well as draw shapes (which can include user definable bitmapped characters such as logos) in 65,536 colors whilst freeing up the host processor from the ˜processor hungry˜ screen control functions.
Features
• Full color graphics LCD display for any microcontroller project.
• Interface to any PIC, AVR, Basic Stamp, ARM or any other microcontrolleras well as a PC.
• Ideal to implement as an electronic panel meter or gauge of any sort for instrumentation or automotive applications.
• Can be used as a mini Bill-Board for advertising.
• Ideal User Interface for any medical or industrial handheld equipment.
• Cost effective ready to go intelligent display for hobbyist, student or professional engineer.
• Download images, icons, animations and pages of text from any PC with the aid of freely available companion "Graphics Composer" utility software.
• 128 x 128 pixel resolution, 65K colors, CSTN LCD screen
• 1.5" diagonal (38mm), 38mm x 40mm x 8mm
• White LED backlighting
• Easy 4 pin interface to any host device: 5V, Tx, Rx, GND
• 5 Volts supply @ 80mA nominal
• Serial RS-232 (0V to 3.3V) with auto-baud feature (300 to 128K baud). If interfacing to a 5V system a series resistor (1K) is required on the Rx line.
• Optional USB interface via the 4D microUSB (uUSB or uUSB-MB modules)
• Optional onboard Flash Memory for storing of icons, images, animations, etc.
• Three selectable font sizes (5x7, 8x8 and 8x12) for ASCII characters as well as user-defined bitmapped characters (64 @ 8x8)
• Built in graphics commands such as: LINE, CIRCLE, TEXT, PAINT, USER BITMAP, BACKGROUND COLOR, PUT PIXEL, IMAGE, etc. just to name a few.
