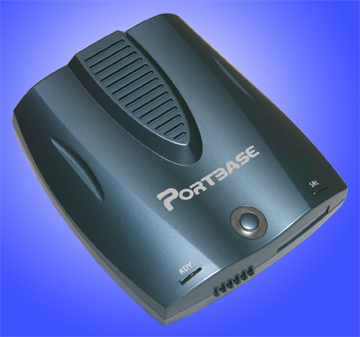

Portbase-3010/RS232 Serial-to-LAN device server

Manufacturer: SystemBase

Reg. $110 Sale! $62.00

Quantities limited at this price!

Portbase-3010 is a device server that provides 1 high-speed serial port and two 10/100M LAN ports. Portbase-3010 not only works like a terminal server that uses a socket program but also offers more convenient function of COM port redirection, which allows you to use a serial communication program without a socket program. It could effectively be applied to connect to POS-related devices or various serial devices inside a factory, monitoring/control/data collection of a remote serial device through a web browser, control of other security/medical instruments, building automation, machine control, process monitoring/control, etc.

Specifications

CPU	32 bit RISC Processor
Flash	4M
SDRAM	8M
LAN	2 10/100M RJ45 ports
LED	PWR, RDY, WAN, LAN, Serial Tx, Rx
Serial Interface	1 DB9 port (RS232 only)
Max Serial Speed	230.4Kbps
Management	Portbase NMS, Web
Protocol	TCP, UDP, Telnet, ICMP, SNMP, DHCP, HTTP
Power	DC 5V External Power Supply
Size	105(W) * 113(D) * 32(H) mm

This product supersedes the Portbase-3080.
