CLEARANCE Item! Limited Stock - please call for quantitites.

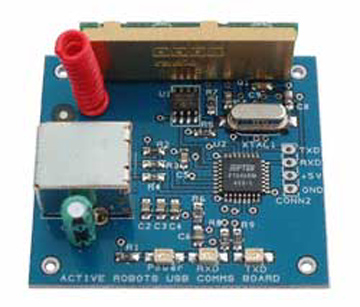

USB RF Telemetry Module
Our easy to use USB Radio Telemetry module provides the means to implement a versatile RF link for use with a wide variety of robotics, embedded control and data-logging applications.
The Module is self powered via the USB Computer Port, therefore no external power supply or batteries are required.
This radio module removes all of the overhead normally associated with radio communications.
All of the necessary construction of packets, encoding/decoding and timing is carried out at the module.
The Module is self powered via the USB Computer Port, therefore no external power supply or batteries are required.
To use these modules, simply connect them to a com port and using either your own software or Hyper terminal set to 19,200 baud, 8 data bits, 1 stop bit, no parity and no handshaking, then, whatever you type in one end will appear exactly the same at the other.
You can use any combination of our RF modules (USB/RS232/TTL) to establish a Telemetry link
Features
- Self Powered
- Range up to 250m (line of sight)
- User selectable radio features
- Free configuration software
- Pwr, Tx & Rx LEDs
Downloads
Download Assistance: To download a document, either left click on the text link adjacent to the document, or right click on the link and choose "Save Target As" then choose a destination on your computer for the document. A free Adobe Acrobat Reader can be downloaded from Adobe (size 8.5Mb - about 30 minute download on a 56k modem)
(254 Kb)
(397 kb)
