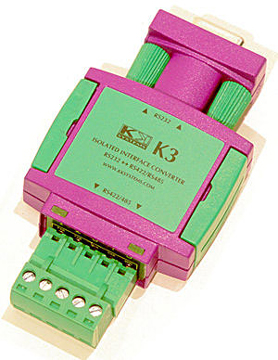

K3-TB RS232/422/485 Isolator 9pinF-termblock

Features

• Plugs directly into a IBM PC 9-way serial port
• Isolation 100% tested at >1000V AC
• RS232 port-powered in most applications
•  0-38400 baud (1200-38400 baud for K3-ADE)
• Automatic Driver Enable (ADE) version - K3-ADE
• Very low supply current
• RS232 output swings above and below ground
• Sony professional compatible (also known as SMPTE) RS422 pinout
• Very low cost
• Replaces K422-ISOL/K485-ISOL and all options

The K3 is an isolated RS232-RS422/485 converter for up to 38400 baud.
For RS485 use, RTS Control may be required from the RS232 device.
The K3-ADE does not need RTS Control.

K3-ADE

K3-TB
