• Vastly expanded range
• Measurement range up to DIN/VDE 0848
• 65 MSPS (Option 005)
• Lots of options
• Frequency range: 1Hz to 1MHz (Option to 30MHz)**
• Typ. level range E-Field: 0,1V/m to 20kV/m**
• Typ. level range H-Field: 0,1nT to 2mT**
• Typ. level range DDC H-Field: 1pT to 2mT**
• Typ. level range DDC Analog in: 200nV to 200mV**
• Typ. accuracy: 3%**

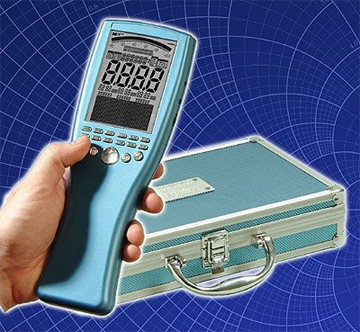

Aaronia's EMF spectrum analyzer
for the professional at an unbeatable price. Ultra broad range and high
accuracy. Range according to complete ICNIRP.
As an option: ISOTROPIC! 3D static magnetic field sensor for differential
measurement of static magnetic fields of magnets, the geomagnetic field
(geophysical assessment of anomalies in the earth's magnetic field), and
others***
The required high-performance multi-channel 65MSPS 12Bit DDC frequency filter
(option 005 - included in price) allows fast, extremely sensitive and super
crisp frequency measurement of even the weakest signals down to 1pT (0.001nT) at
an incredible price! Just one example of the added possibilities is measurement
of the 125-135kHz RFID band (decoder software already in development).
By adding the 20MHz or 30MHz
frequency extensions, wholly new applications become possible: for example,
assessment of the 13.56MHz RFID and VDSL2 frequency bands. A MUST-HAVE for EMC
measurement. An ideal solution for technicians and authorities for ACCURATE
examination of signal sources up to 30MHz. AC analog input with high
sensitivity (down to 200nV).
Includes: NF-5030, OPTION 005 12-bit
DDC Frequencey Filter, special-battery, battery charger, Aluminum case and
detailed English manual.
Specifications
|
|
NF-5010 |
NF-5030 |
|
Frequency range Min |
1Hz |
1Hz |
|
Frequency range Max |
1MHz |
1MHz
(30MHz with Option 010) |
|
Range electrical field [V/m] (typical) Min (1D) |
0,1V/m |
0,1V/m |
|
Range electrical field [V/m] (typical) Max (1D) |
5kV/m |
20kV/m |
|
Range magnetic field [Tesla] (typical) Min (3D!) |
1nT |
1pT** |
|
Range magnetic field [Tesla] (typical) Max (3D!) |
100µT |
2mT |
|
Range magnetic field [Gauss] (typical) Min (3D!) |
10µG |
10nG** |
|
Range magnetic field [Gauss] (typical) Max (3D!) |
1G |
20G |
|
Filter bandwidth Min |
1Hz |
1Hz |
|
Filter bandwidth Max |
1MHz |
1MHz |
|
Accuracy base unit (typical) |
3% |
3% |
|
FFT (Resolution in points) |
1024 |
1024 |
|
Vector power measurement (I/Q) and True RMS |
 |
|
|
FEATURES |
|
Standards conformant exp. limits (ICNIRP, BGV B11,
BlmSchV etc.) |
|
|
|
Extended full ICNIRP range |
- |
|
|
Isotropic (3D) AC magnetic field measurement |
|
|
|
Supports custom P-Code software |
|
|
|
ADVANCED HOLD mode (HOLD function) |
|
|
|
INTERNAL data logger (long-term measurements) |
|
|
|
FLASH memory including firmware update (over the
Internet) |
64K |
64K |
|
“Clear text” signal identification with direct
frequency display |
|
|
|
Integrated battery charging circuitry |
|
|
|
Internal speaker |
|
|
|
Audio demodulation |
AM&FM |
AM&FM |
|
DISPLAY |
|
Fast FFT or DFT spectrum analyses |
|
|
|
Limit calculation with simultaneous percentage
display |
|
|
|
X, Y, Z Axis display or Vectorproduct (only
M.-Field) |
|
|
|
Main display in V/m, Tesla, Gauss or A/m (switchable) |
|
|
|
High-resolution 50 segment bargraph (trend display) |
|
|
|
3fold marker display (ex. 3x field strength &
frequency at once) |
|
|
|
INTERFACES / CONNECTORS |
|
Fast USB 2.0 interface (computer connection) |
|
|
|
Audio output |
|
|
|
DC input (max. 15V) for external power supply |
|
|
|
External ultra sensitive signal input (SMA input)
with max. 0.2V |
|
|
|
Jog Dial (Multi-functional dial) for "one-hand
operation" |
|
|
|
OPTIONS (extra charge) |
|
Option 001 (1MB memory expansion) |
|
(not
included) |
|
Option 005 (12Bit DDC / offers ultra high
sensitivity up to 1pT) - REQUIRED |
- |
INCLUDED |
|
Option 006 (Measure 3D static magnetic fields)* |
- |
(not
included) |
|
Option 009 (Ultra high 24Bit resolution on static
magnetic fields) |
- |
(not
included) |
|
Option 010 (Expanded frequency range up to 30MHz
e.g. RFID) |
- |
(not
included) |
|
INCLUDED ACCESSORIES in addition to the base unit |
|
Aaronia 7.2V high-performance battery (1300mAh) +
charger |
|
|
|
Aluminum design transport case incl. padding inlays |
|
|
|
PROFESSIONAL PC analysis software (Windows, download
via Internet) |
|
|
Includes FREE PC analysis Software.
