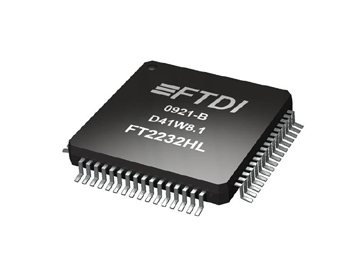

FT2232HL FTDI High Speed USB-to-UART/FIFO IC, LQFP

The FT2232H is FTDI’s 5th generation of USB devices.  The FT2232H is a USB 2.0 Hi-Speed (480Mb/s) to UART/FIFO IC.  It has the capability of being configured in a variety of industry standard serial or parallel interfaces.

Building on the innovative features of the FT2232, the FT2232H has two multi-protocol synchronous serial engines (MPSSEs) which allow for communication using JTAG, I2C and SPI on two channels simultaneously.

The FT2232H is available in Pb-free (RoHS compliant) 64-pin LQFP and QFN packages.

• FT2232H Datasheet

• VCP Drivers

• D2XX Drivers

• MPSSE Code Examples
• MPSSE JTAG DLL
• MPSSE I2C DLL
• MPSSE SPI

Key Hardware Features

• Single chip USB to dual serial / parallel ports with a variety of configurations.
• Entire USB protocol handled on the chip. No USB specific firmware programming required.
• USB 2.0 High Speed (480Mbits/second) and Full Speed (12Mbits/second) compatible.
• Dual Multi-Protocol Synchronous Serial Engine (MPSSE) to simplify synchronous serial protocol (USB to JTAG, I2C, SPI or bit-bang) design.
• Dual independent UART or FIFO ports configurable using MPSSEs.
• Independent Baud rate generators.
• RS232/RS422/RS485 UART Transfer Data Rate up to 12Mbaud. (RS232 Data Rate limited by external level shifter).
• USB to parallel FIFO transfer data rate up to 10Mbyte/sec.
• Single channel synchronous FIFO mode for transfers > 25 Mbytes/sec.
• CPU-style FIFO interface mode simplifies CPU interface design.
• MCU host bus emulation mode configuration option.
• Fast Opto-Isolated serial interface option.
• FTDI’s royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers eliminate the requirement for USB driver development in most cases.
• Adjustable receive buffer timeout.
• Option for transmit and receive LED drive signals on each channel.
• Enhanced bit-bang Mode interface option with RD# and WR# strobes.
• FT245B-style FIFO interface option with bidirectional data bus and simple 4 wire handshake interface.
• Highly integrated design includes +1.8V LDO regulator for VCORE, integrated POR function and on chip clock multiplier PLL (12MHz – 480MHz).
• Asynchronous serial UART interface option with full hardware handshaking and modem interface signals.
• Fully assisted hardware or X-On / X-Off software handshaking.
• UART Interface supports 7/8 bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No Parity.
• Auto-transmit enable control for RS485 serial applications using TXDEN pin.
• Operational configuration mode and USB Description strings configurable in external EEPROM over the USB interface.
• Configurable I/O drive strength (4,8,12 or 16mA) and slew rate.
• Low operating and USB suspend current.
• Supports bus powered, self powered and high-power bus powered USB configurations.
• UHCI/OHCI/EHCI host controller compatible.
• USB Bulk data transfer mode (512 byte packets in Hi-Speed mode).
• +1.8V (chip core) and +3.3V I/O interfacing (+5V Tolerant).
• Extended -40°C to 85°C industrial operating temperature range.
• Compact 64-LD Lead Free LQFP or LQFN package.
• +3.3V single supply operating voltage range.
