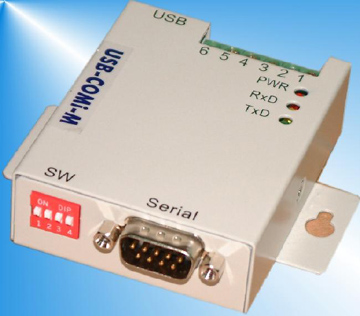

USB-COMi-M USB to RS422/485 (39" cable) Metal Box

The USB Industrial I/O Adapter is designed to make industrial communication port expansion quick and simple. Connecting to a USB port on your computer or USB hub, this USB Industrial IO adapter instantly adds and industrial multi-electrical interface serial communication port to your system with easy plug-and-play and hot-plug features.

Plugging the USB Industrial I/O Adapter into the USB port, the adapter is automatically detected and installed. There is no IRQ & COM port conflicts, since the port doesn't require any additional IRQ, DMA or memory on the system. The RS-232, or RS-422/485, port functions as a native Windows COM port, and it is compatible with Windows serial communication applications. Each port is individually configurable.

This USB to Industrial I/O Adapter provides instant connectivity to RS-232/422/485 communication devices for factory automation, multi-drop data collection devices, barcode readers, time clocks, scales, data entry terminals, PC to PC long distance communications, ATMs and serial communications in harsh environments. This USB to Industrial I/O Adapter provides an industrial solution for applications requiring a single node or multi-drop communications over short and long distances.

Specifications & Features:

• Adds a high speed RS-232/422/485 serial port via USB connection
• 384 byte receive buffer.
• 128 byte transmit buffer for high speed data throughput.
• Requires no IRQ, DMA or I/O port.
• Data rate speed range: 300 bps to 921,600 bps
• Serial Connector: one DB-9 male connector, and one 6-pin Terminal Block
• Auto transmit buffer control for 2-wire RS-485 half-duplex operation.
• Termination resistors installed on-board.
• RS-232 data signals: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI.
• RS-422 data signals: Tx-, Tx+, Rx+, Rx-, GND, RTS-, RTS+, CTS+, CTS-.
• RS-485 data signals: Rx-, Tx+, Rx+, Rx- (r wire), and data-, data+ (2 wire).
• LEDs which show transmitting and receiving of data.
• Supports power output of 5V, 150mA, through Pin-5 of terminal block, for external devices requiring power.
• External 4-pin dip switch to set RS-232, RS-422 & RS-485 modes.
• Virtual COM port drives provided for Windows 98, 98SE, ME, 2000, XP & 2003.
