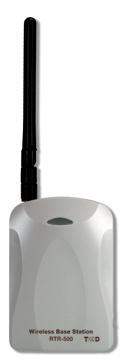

The RTR-500 can be used as either a Base Unit or a Repeater for our newest RTR-500 Wireless Data Logger Series. It can also be used to extend wireless communication between an RTR-500 Data Logger and an RTR-500GSM Mobile Base Station.
Easy-USB connection means this type of Base Unit is perfect for on-site use. By being able to send downloaded recorded data and/or current readings by e-mail or FTP to a designated address, the RTR-500 makes data management easier and more streamlined than ever before.
Furthermore, data can now be easily shared over a network.
* RTR-500 can not be used with our RTR-50, RTR-5W and RTR-5 Series loggers.
RTR-500 Series Brochure
RTR-500 Series Datasheet
Application Examples
* For Recording and Monitoring Temperature and Humidity in Factories and Buildings
* For Temperature and Humidity Management in Blood and Pharmaceutical Storage at Hospitals
* For Temperature Management of Refrigerated and Frozen Goods at Supermarkets and Convenience Stores
Use as a Base Unit
The RTR-500 can be registered as a Base Unit so that it can download recorded data from Remote Units via wireless communication and then by connecting it to a PC with a USB cable, the data can be easily downloaded to your computer. Easy-USB connection means this type of Base Unit is perfect for on-site use. Downloading recorded data from one full (16,000 readings) Remote Unit into the Base Unit takes only about 2 minutes.
Transmitting Data via a Network
Recorded Data and Current Readings can be automatically downloaded from Remote Unit(s) at a set interval and that data can then be sent by e-mail or FTP to a designated address.
Sending Warning Report MailsSending Warning Report Mails
By setting the Warning Monitoring Function to "ON", if the set upper or lower limits have been exceeded and that occurrence has been judged by the RTR-500 to qualify as a warning, a Warning Report Mail containing warning details can be sent to up to four specified addresses.
Monitoring Current Readings
It is possible to monitor and view current readings for groups of Remote Units registered to a RTR-500 Base Unit on Computer Display.
Registering a Multiple Number of Remote Units
It is possible to organize Remote Units and register them as Groups into a Base Unit depending on their location, measurement items, or other category. It is possible to register up to 640 Remotes into up to 20 Groups.
Specifications
| RTR-500 (FCC model for US) |
Base Unit |
Repeater |
| Compatible Devices |
Remote Units:
RTR-501/501L, RTR-502/502L, RTR-503/503L
Repeater: RTR-500 |
Base Unit:
RTR-500GSM, RTR-500 |
| Features and Functions |
When connected to a PC as a Base Unit with "RTR-500 for Windows" running:
1. Auto-downloading of Recorded Data (E-mail or FTP),
2. Automatic Sending of Current Readings (E-mail or FTP),
3. Warning Monitoring (E-mail) |
-
|
| Types of Warnings |
Remote Unit Temperature / Humidity Measurement Warnings,
Remote Unit Wireless Communication Error Warnings,
Remote Unit Battery Level Warnings,
Remote Unit Sensor Abnormality Warnings |
-
|
| Power |
USB bus power |
AA alkaline battery x 2
AC adaptor (AD-0638) |
| Operating Voltage |
2.5V to 7.0V |
| Current Consumption |
Approx. 50mA (Wireless Communication) |
| Communication Interface |
USB (with PC)
Optical Communication (with Remote Unit) |
| LED Indicator |
Blinking: During Wireless Communication or PC Communication
Lamp ON: Connected via USB |
| Battery Life |
-
|
Six months * |
LED Display
Green |
Blinking: During Wireless Communication or PC Communication
Lamp ON: Connected via USB |
| Dimensions |
H 96mm x W 65mm x D 25mm / Antenna Length : 109mm
* Excluding protrusions |
| Weight |
Approx. 71g (Batteries not included) |
| Operating Environment |
Temperature: -10 to 60°C (-30 to 60°C when external power connected)
Humidity: 20 to 80%RH (No condensation) |
| Other |
Not waterproof, moistureproof, or dustproof. |
*When used for wireless communication five minutes a day. Battery life varies depending upon the measuring environment, the communication frequency, and the quality of the battery being used.
|
| Short Range Wireless Communication |
| RF Power |
7mW |
| Wireless Specifications |
FCC Part15 Section247 / IC RSS-210 (Frequency Range: 902 to 928MHz ) |
| Transmission Range |
About 150m (500 ft) (if direct and unobstructed) |
| Communication Speed |
When downloading 1 Remote Unit of full data (16,000 readings): about 2 minutes
* The same amount of time will be necessary for each added Repeater. |
| Network Communication |
| Data Transfer Protocol |
When connected to a PC as a Base Unit with "RTR-500 for Windows" running:
Auto-downloading of Recorded Data / Automatic Sending of Current
- ReadingsFTP (PASV mode also supported)
- SMTP (SMTP-AUTH, POP-Before)
- *SMTP-AUTH supports PLAIN, LOGIN and MD5
Warning Monitoring
- SMS / SMTP (SMTP-AUTH, POP-Before)
- *SMTP-AUTH supports PLAIN, LOGIN and MD5
|
