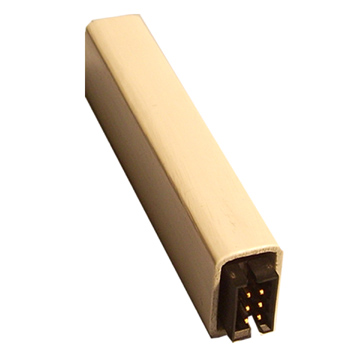

UPSI H-TUTA.32 4-20 mA Line Humidity Transmitter

4-20 mA Line Humidity Transmitter

Associated to probe F-TUCN.33P
Relative humidity from 0 to 100% RH
Ambient temperature (AT) from -40°C to 85°C
Humidity channel 4-20 mA two wires system
Temperature channel 4-20 mA two wires system
RH response time from 0.3s to 50s (Rx to Lx suffix)
Linearity error RH = 1.5% RH AT 0.25°C
Supply voltage 7.5V to 40V
Insensitive to both voltage supply and load resistor
Galvanic insulation channels RH and AT
Measurement and supply current 4 mA to 20 mA
Standard dimensions L W H : 60 x 13 x 11 mm
