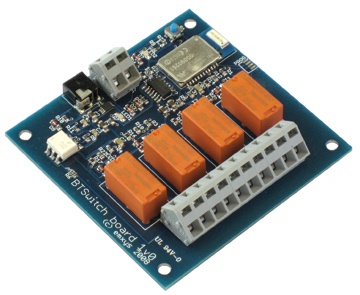

BT Switch I/O Board

BTswitch: 4 output/1 input Bluetooth module for wireless control applications.

Main features:
• Ready Embedded stand-alone design
• Serial port profile compatible.
• Direct control of 4 switches.
• Direct reading of one input.
• Bluetooth 2.0 compatible.

Connects to:
• Bluetooth Smart Phones.
• PDAs: PocketPC & Palm.
• Personal Computers: Windows & OSX.
• Other Bluetooth modules: PearlBlue or uIceBlue.

The BTswitch I/O Bluetooth Module BTswitch implements the Bluetooth Serial Port Profile and waits to be discovered and paired. Once a device is successfully paired it offers a (Bluetooth virtual) serial port to connect to it and issue ASCII commands to control its four breakers and read its isolated input. There are also commands to change the name of the Bluetooth device and to change the PIN number.  The board presents 4 circuit breakers that can be selected to ON (connected) or OFF (disconnected) and one +5V input that may be read thought its Bluetooth serial port after a successful pairing and connection has taken place.

Applications:
• Embedded Instruments
• Industrial control
• Ambient Intelligence & domotics
• Hobby

Link to manufacturer for additional information, user documents and application notes.
