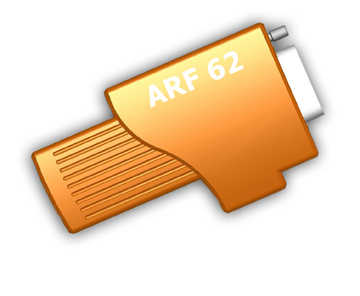

ARF62 DB15 - Bluetooth to RS232

Manufacturer: Adeunis

Price: $145.96

ARF62 dongles are wireless Bluetooth® Class1 network adaptors usable for full duplex data transfer between Bluetooth® equipments over 150m.

They use the international 2.45 GHz frequency band as described by European Directive RTTE EN 300-220 / EN 301-489 and FCC P15 / IC (USA/CAN). These dongles integrate the Bluetooth® V2 stack and are Bluetooth® certified.

They enable fast file transfer (723 kbps) without any wires or dedicated software.

Configuration can be carried out using AT commands through a serial port. They can be used in command mode or transparent mode. They take advantage of an extremely compact design with a built-in antenna. Depending on the version, they are available as; DCE / DB9 female, DTE / DB9 male or DTE / DB15HD male.

These dongles are THE solution for wirelessly linking all devices designed to be connected to a laptop or desktop PC, through an RS232 DB9 or DB15 serial port. They are able to replace cables to build any connection between a PSTN / GPRS modem and a PDA or between a PC and any Bluetooth® device.

Class1 Bluetooth® RS232 Dongle (ARF7503A)

Bluetooth® Class1 network adaptors
Frequency on the free wavebands 2.4 - 2.5GHz
Totally complies with the Bluetooth® V2 standard
Radio rate up to 723 kbps
Serial link rate: 9.6 to 115.2 kbps
Configuration through AT commands
Full RS232 serial port profile
Specific Profil : GAP - SDAP - SPP - DUN - SPP config.
Range: 150m
Compact design with integrated antenna

Interconnection of equipments applications

Wireless connection of any devices with RS232 serial port profile
Notebook, PDA, PC
RTC / GPRS modem
Printer, fax ...

Data Sheet
