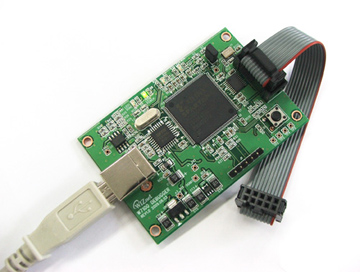

W7100 Debugger Tool for W7100

W7100 Debugger Tool for W7100

Manufacturer: Wiznet

This product is discontinued.

Feature

  • Quick Test of W7100
  • Expansion Port
  • Provide WizISP for programming
  • Support Debugger for Debugging
  • Support Various Interfaces : Serial, Ethernet, DTAG (Debugger Socket)
  • Embedded 64kBytes Flash memory, 64kBytes RAM, and 256Bytes Data Flash

Specification

Part
Description
Remark
MCU
Internet Embedded MCU - W7100
8051
compatible
Memory
64KBytes Data Memory
64KBytes Code Memory
2KBytes Boot code Memory
256Bytes Data Flash
Embedded in W7100
Serial
On board RS-232C 1Port with DB9 Connector

Ethernet
On board MAC-Jack (Transformer + RJ-45 Connector)

LCD
16Character * 2Line Character LCD

LED
User Debugging LED 3Ea
Network Status LED 8Ea

Button
Reset Switch 1Ea

Debugger
On board Debugger Socket

Expansion Port


MCU port expansion

  • 32Pin (8pin*4) 2.54mm Pitch Pin-Header Hole
  • 14Pin (7pin*2) 2.54mm Pitch Pin-Header Hole
  • 32Pin (8pin*4) 2.00mm Pitch Pin-Header Hole
  • 14Pin (7pin*2) 2.00mm Pitch Pin-Header Hole

Dummy Hole

  • 167Pin 2.54mm Pitch Dummy Hole
  • 236Pin 2.00mm Pitch Dummy Hole

Power
DC 5V / 2A Adapter

PCB
120mm * 80mm Size


W7100 Debugger Guide & Program
