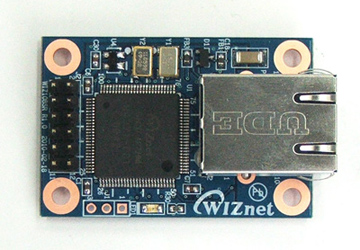

WIZ108SR Compact Pin-header RS422/485 to Ethernet Module

Manufacturer: Wiznet

RS422/RS485-to-Ethernet

Feature

Connect with the Serial Device directly
- * Adding Network Function Simply and Quickly
- * Providing Firmware Customization
High System Stability and Reliability by using W7100 Hardware Chip
Supports Serial Configuration &ndash with Simple and Easy command
Supports Password for the Security
Easy & Powerful Configuration Tool Program
Telnet Com Port Option (RFC2217) Compliant
10/100 Ethernet Interface and RS-422 / RS-485 Interface support
ROSH Compliant

Specification

Architecture	TCP / IP	W7100
	PHY	Included in W7100 Auto negotiation (Full-duplex and Half-duplex) Auto MDI / MDIX
	Serial	RS-422 / RS-485
	MCU	Included in W7100 Fully software compatible with industrial standard 8051 Internal 2KBytes Boot ROM Internal 64KBytes embedded program FLASH memory Internal 256Bytes embedded data FLASH memory Internal 64KBytes embedded SRAM Internal 32KBytes memory for TCP/IP data communication
Serial	Interface	RS-422 / RS-485
	Signals	RS-485 TRXD+, TRXD- RS-422 TXD+, TXD-, RXD+, RXD-
	Parameters	RS-422 / RS-485 Select RS-485 Direction control
	Speed	Up to 230Kbps
Dimensions		30mm X 45mm (PCB width x length)
Connector type		2.54mm Pitch 12 pins
Input Voltage		DC 3.3V
Power Consumption		Under 250mA
Temperature		0° C ~ 70° C (Operating), -40° C ~ 85° C (Storage)
Humidity		10~90%
