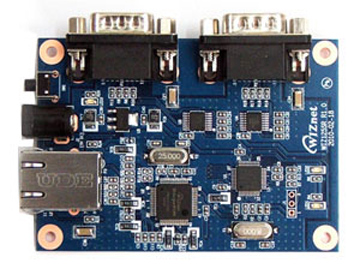

WIZ125SR Serial to Ethernet Board 2 x RS232 + RJ-45

Architecture

TCP / IP

W5100

PHY

Embedded in Included in W5100

MCU

ARM Cortex-M3

Network

Interface

10/100 Base-T Ethernet (Auto detection)

Protocol

TCP, UDP, IP, ARP, ICMP, IGMP, MAC, DHCP, PPPoE, DNS

Serial

Port

2 UART(RS-232C)

Serial format

Data bits 7,8
Stop bits 1,2
Parity None, Odd, Even

flow control

None, XON/XOFF, CTS/RTS

signal

TXD, RXD, RTS, CTS, GND

Speed

1200bps ~ 230Kbps

Software

Remote Download and Configuration

Temperature

0 ~ 70°C (Operating), -40~85°C (Storage)

Humidity

10~90%

Power

DC 5V, 220mA(max)

Connector type

2 ports DSUB-9 connector

Size

60mm x 85mm
