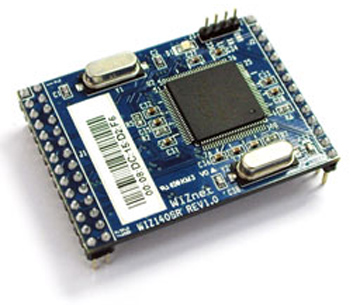

WIZ140SR Serial to Ethernet Board 4 x TTL + Xfmr

WIZ140SR Serial to Ethernet Board 4 x TTL + Xfmr

Manufacturer: Wiznet

Price: $55.00

Features

Supports 4 RS-232 serial ports
directly connects with the serial device
*Adding network function simply and quickly
*Providing Firmware customization
High system stability and reliablilty by using W5300
Easy and powerful configuration tool program
Supports DHCP and DNS function
Supports static as well as dynamic IP setting
10/100 Mbps Ethernet interface, Max 115,200bps serial interface
RoHS compliant

WIZ140SR/WIZ145SR Downloads

Specifications

Architecture	TCP / IP	W5300
	PHY	Embedded in Included in W5300
	MCU	ARM based 32bit MCU
Network	Interface	10/100 Base-T Ethernet (Auto detection)
Network	Protocol	TCP, UDP, IP, ARP, ICMP, IGMP, MAC, DHCP, DNS
Serial Data Port	Interface	TTL
	Signals	TXD, RXD, RTS, CTS, GND
	Parameters	Parity : None, Odd, Even Data bits : 7, 8 bit Flow control : None, RTS / CTS, XON / XOFF
	Speed	Up to 115,200bps
Serial Debug Port	Interface	TTL
	Signals	TXD, RXD
	Parameters	Parity : None Data bits : 8 bit Flow control : None
	Speed	115,200bps
Software		Remote Download and Configuration
Temperature		0 ~ 70°C (Operating), -40~85°C (Storage)
Humidity		10~80%
Power		DC 3.3V, Under 250mA
Connector type		2.54mm Pitch Pin-header, 14Pin (1x14) 2.54mm Pitch Pin-header, 28Pin (2x14)
Size		48.26mm x 35.56mm x 16.2mm
