Home > Embedded > Ethernet > Boards > WIZnet Chip Evaluation Board (EVB-B1+)

Share

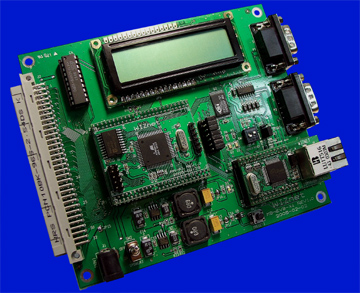

WIZnet Chip Evaluation Board (EVB-B1+)

WIZnet Chip Evaluation Board (EVB-B1+)

Manufacturer: Wiznet

Price: $99.00

Features

  • Data Transfer up to 6Mbps with Atmega 128(8MHz)
  • Internet Application Protocols ANSI C Source Codes such as TCP, UDP, DHCP
  • By using external 96pin connectors, AVR's all pins can be used coping with developer's needs
  • Available of testing SPI Interface
  • Provides various application source codes Loopback, Webserver, Ping
  • Supports ISP & JTAG Interface


Category

Specification

Base Board

UART

RS232 serial port

Display

Text LCD(Gray 16 X 2)
PM-PIC24 MCU Atmega128
-128K Bytes Flash
- 4K Bytes EEPROM
CLOCK 8MHz Crystal
External Memory SRAM (32K Bytes)

NM7010B+

TCP/IP

W3150A+

PHY

IP101A-LF (Ethernet PHY)

Mag Jack

RDA-125BAG1A

W3150A+ Datasheet
