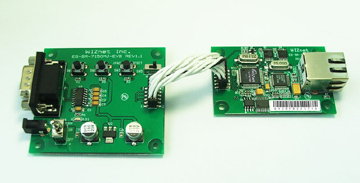

EG-SR-7150MJ-EVB - W3150A-based Serial-Ethernet Module Dev Kit

EG-SR-7150MJ-EVB - W3150A-based Serial-Ethernet Module Dev Kit

Manufacturer: Wiznet

Reg. $99 Sale! $49.95

Limited quantities.

Features

Ready-to-Go Serial to Ethernet Gateway Module mounted with RJ-45 connector
Serial Command Support
Simple Command Frame Format
Comprehensive & Readerable Command Set for Network and Serial Settings
Available of on-site configuration without PC
High Stability & Reliability by using W3150A WIZnet Chip(Fully Hardwired TCP/IP Stack)
Easy & Powerful Configuration Program
10/100Mbps Ethernet Interface, Max, 230Kbps Serial Interface

Specifications

Architecture	TCP / IP	W3150A
	PHY	RTL8201BL (Ethernet PHY)
	Serial	RS-232(LVTTL)
	MCU	AT89C51RC2 (8bit MCU and 32K Flash)
	Memory	SRAM(32K bytes)
Network	Interface	10/100Mbps auto-sensing, RJ-45 Connector
Network	Protocol	TCP, UDP, IP, ARP, ICMP, MAC, PPPoE
Serial	Signals	TXD, RXD, RTS, CTS, GND
	Parameters	Parity : None, Even, Odd Data bits : 7, 8 Flow Control : RTS/CTS, XON/XOFF
	Speed	Up to 230Kbps
Dimensions		40mm X 55mm X 17mm
Connector Type		2mm Pitch 12 Pins, 55mm X 40mm
Input Voltage		3.3V Internal Operation
Power Consumption		150mA
Temperature		0Ž ~ 70Ž (Operating) -40Ž ~ 85Ž (Storage)
Humidity		10 ~ 90%

Contents

	- EG-SR-7150MJ-EVB
	- CD (Schematics, Manuals)
	- 5V 500mA Power Adapter
	- Serial Cable, UTP cable
