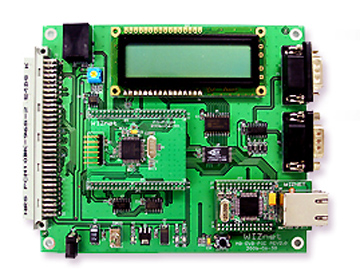

PIC 24 EVB

PIC 24 EVB

Manufacturer: Wiznet

Price: $99.00

Features

  • Full Duplex Data Transfer up to 6Mbps with PIC24
  • Internet Application Protocols ANSI C Source Codes such as TCP, UDP, DHCP
  • By using external 96pin connectors, PIC24's all pins can be used coping with developer's needs
  • Provides various application source codes Loopback, Webserver, Ping
  • Supports ICSP Interface



Category

Specification

Base Board

UART

RS232 serial port (1 Port)

Display

Text LCD(Gray 16 X 2)
PM-PIC24 MCU PIC24FJ128
-128K Bytes Flash
- 8K Bytes SRAM
CLOCK 16MHz(8MHz Crystal used)
External Memory SRAM (32K Bytes)

NM7010B+

TCP/IP

W3150A+

PHY

IP101A-LF (Ethernet PHY)

Mag Jack

RDA-125BAG1A



Development Environment

  • Compiler All source codes are developed by Microchip C30 Compiler
  • Firmware programming & debugging MPLAP ICD 2 (separate selling)



Contents

  • MB-EVB-PIC + PM-PIC24 + NM7010B+
  • CD (Source Codes,  Schematics, Manuals)
  • DC 5V Power Adapter
  • Serial Cable, UTP cable
  • MPLAP ICD 2  (separate selling)

W3150A Datasheet   v2.0.4
