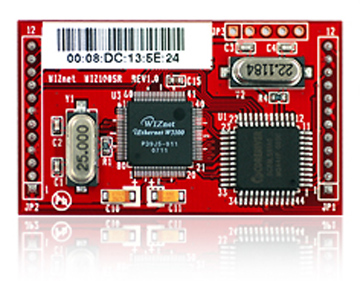

WIZ100SR Serial to Ethernet Module (pins)

WIZ100SR Serial to Ethernet Module (pins)

Manufacturer: Wiznet

Price: $22.00

Features

  • Plug & Play Type Serial to Ethernet Gateway Module
  • High stability & reliability by using W5100 WIZnet Chip, a fully-hardwired TCP/IP stack
  • 10/100Mbps Ethernet Interface, Max 230Kbps Serial Interface
  • Compact Size : 50mm X 30mm
  • Easy & Powerful Configuration program
  • RoHS compliant



Specifications

Architecture

TCP / IP

W5100

PHY

Included in W5100
MCU GC89L591A0-MQ44I(fast 80C52 compatible)
- 62K Bytes in-system programmable (ISP) Flash
Memory - GC89L591A0-MQ44I Internal SRAM 16K Bytes
-GC89L591A0-MQ44I Internal EEPROM 2K Bytes

Mag Jack

 RDA-125BAG1A

Network

Interface

10/100 Base-T Ethernet (Auto Detection)

Protocol

TCP, UDP, IP, ARP, ICMP, MAC, DHCP, PPPoE
Serial Flow Control

None, XON/XOFF, RTS/CTS
Serial Format 8-N-1, 8-O-1, 8-E-1, 7-O-1, 7-E-1
(DataParity-Stop bit)
Speed 1200bps to 230Kbps
Dimensions 50mm X 30mm X 12mm
Connector Type 2 X 12 2mm Pin header array

Input Voltage

3.3V Internal Operation, 5V Tolerant I/Os

Power Consumption

 150mA

Temperature

0 ~ 80 (Operating),
-40 ~ 85 (Storage)

Humidity

10 ~ 90%


Comparison among WIZnet Serial-to-Ethernet Modules

  WIZ110SR WIZ105SR WIZ110SR WIZ120SR
Hardware
 		 UTP Pin Header RJ45 Connector RJ45 Connector UTP Pin Header
TTL Pin Header DB9 connector TTL Pin Header
(2 Serials)
Common
Key
Features

- W5100 Embedded
- 10/100Mbps Ethernet Interface
- Max. 230Kbps Serial Interface
- Easy & Powerful Configuration Program
- Support:
TCP/UDP/IP/ARP/ICMP/MAC/Static/DHCP/PPPoE/DNS/Serial Command


 WIZ100SR User Manual
