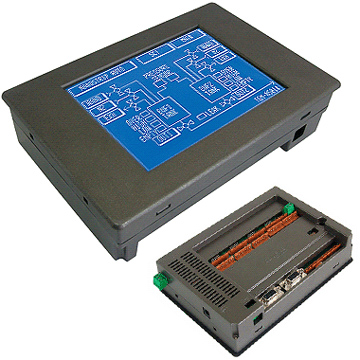

ALL-IN-ONE type touch panel
controller
BASIC and Ladder Logic Controller,
Graphic LCD, and Touch Panel are fused into one product, CuTOUCH™.
Replace outdated PLC, push-buttons, small LCD
combo with 1 single CuTOUCH™.
OR
repleace over-priced Touch-screen HMI + PLC combo with 1 single
CuTOUCH™.
With BASIC language,
you can create custom graphics and process touch input. With Ladder Logic,
real-time I/O and sequential processing can easily be implemented into your
final product.
With 82 I/Os and 2
RS232 hardware independent ports, there is plenty of room for interfacing with
various peripherals.
To top it off,
CuTOUCH™ supports MODBUS protocol to interface with other PLCs, HMIs, and
PCs.
Graphics can easily
be implemented using CuCANVAS™, a graphic program in which you can create
boxes, circles, and lines just like a paint program. A source code will be
generated for you so you don't have to code anything. Pixel Studio™
is another graphic program in which you can create up to 200 custom characters
easily.
Cutouch Features
- Dual Processor Atmega128: First Processor is
dedicated to Touch screen and graphic LCD control, Second Processor is
dedicated to Basic and Ladder Logic Multi-tasking.
- Opto-isolated 7.5 to 30V DC inputs & TTL 5V inputs
- 24V DC NPN TR & TTL 5V outputs
-
Replace outdated
buttons, LCDs, industrial controllers with one single ALL-integrated CuTOUCH.
- Ideal for apps requiring RTC (Real Time Clock) and
data memory back-up during power-down.
- Ideal for apps requiring large data memory. (e.g.
Modbus RTU Master
- Ideal for small to mass production (1 to 1000+),
Mountable on custom steel enclosures.
- MODBUS Supported
- SPI & I2C Protocol Supported
- Use Ladder Logic and BASIC to program
the unit.
- Automatic source-code generation for graphics.
|
Processor
|
CuTOUCH™
CT1721C |
|
Microprocessor |
Dual Core Atmega128 @
18.432Mhz |
|
Program Memory (Flash) |
80KB |
|
Data Memory (RAM) |
24KB(BASIC) + 4KB(Ladder
Logic) |
|
EEPROM |
4KB EEPROM |
|
BASIC Execution Speed |
36,000/sec |
|
Ladder Scan Time |
10ms
(Turbo-mode: ~100usec) |
|
Serial Ports for
Communication |
2 High-speed hardware
independent serial ports
(Channel 0 & 1 : RS232C 12V)
Configurable Baud rates:
2400bps to 230,400 bps |
|
Digital Inputs |
32 opto-isolated
inputs (7.5 to 30VDC) 17 TTL 5V input/output configurable
1 TTL 5V input |
|
Digital Outputs |
32 opto-osolated 24V DC
TR outputs
17 TTL 5V input/output configurable
|
|
Analog Inputs |
8 channel 10-bit ADCs
Configurable Voltage:
0 to 5V OR 0 to 10V |
|
Analog Outputs |
6 Channel 16-bit PWM or DAC
Output Voltage Range: 0 to 5V
Configurable Frequencies for PWM:
35hz to 1.15Mhz |
|
External Interrupts |
4 Channels |
|
High Speed Counters |
2 Channel 16-bit Counters
(up to 2Mhz - 2,000,000 pulses/sec)
|
|
Power |
Required Power: 24V DC
Current Consumption w/ ports unloaded:
CT1721C Current Consumption
@ 24V w/ Backlight ON: 170mA
@ 24V w/ Backlight OFF: 70mA
|
|
RTC (Real Time Clock) |
Yes |
|
Timers |
1 User Configurable Timer
Configurable Interval Units = 10ms |
|
Data Memory Back-up |
* Yes, a 1 Fahrad
rechargable Super-Capacitor is included. |
|
Operating Temperature |
0 °C to 70 °C |
|
Package |
Integrated Touch-screen
Panel w/ 2mm Headers and 2.5mm RCABLE Headers |
|
Size |
7.36"
x 5.00" x 1.71" (187 x 127 x 43.5 mm)
Viewing Area (Touch-sesitive):
4.5" x 3.4" (5.6" diagonal) |
* The 1.0F rechargeable super-capacitor on
the CuTOUCH™ will back up the data memory of the CuTOUCH™ module for a period of
approximately 10 days during power-down.
For longer duration of backup period, please
use a battery or a super-capacitor with larger capacity (e.g. A
10F super-capacitor will last you ~100 days or 3 months, a battery can extend
this period to 1 to 10 years depending on the capacity of the battery used)
I/O Connectors and Brackets are included
for metal panel mounting.
