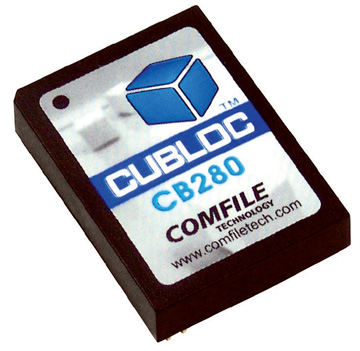

CB280 Cubloc Core Module - Basic with Ladder Logic Controller

CB280 Cubloc Core Module - Basic with Ladder Logic Controller

Manufacturer: Comfile

Price: $42.96

New Page 4

Ideal for apps requiring modest number of I/O ports.
Ideal for small to large production (1 to 1000), Embeddable in customized PCB and CB280 CS Chipset version available for mass production(1,000+).
MODBUS ASCII (Master & Slave Mode) Support
MODBUS RTU (Master & Slave Mode) Support
External Peripherals CuNET (I2C) included.
External Peripherals SPI included.
Develop using CublocStudio in BASIC and/or Ladder Logic Language.

Processor	CUBLOC CB280
Microprocessor	Atmega128 @ 18.432Mhz
Program Memory (Flash)	80KB
Data Memory (RAM)	2KB(BASIC) + 1KB(Ladder Logic)
EEPROM	4KB EEPROM
Program Speed	~36,000 instructions/sec
General Purpose I/O	49 I/O lines (5V TTL) (input/output configurable)
Serial Ports for Communication	- 2 High-speed hardware-independent serial ports (Channel 0: RS232C 12V, Channel 1: RS232C 12V & TTL 5V) - Configurable Baud rates: 2400bps to 230,400 bps
Analog Inputs	8 Channel 10-bit ADCs
Analog Outputs	- 6 Channel 16-bit PWMs (DACs) - Configurable Frequency: 35hz to 1.5Mhz
External Interrupts	4 Channels
High Speed Counters	2 Channel 32-bit Counters (up to 2Mhz)
Power	5V, 40mA (ports unloaded)
RTC (Real Time Clock)	No
Timers	- 1 User Configurable Timer - Configurable Interval Units = 10ms
Data Memory Back-up	None
Operating Temperature	-40 °C to 120 °C
Package	64-pin Module
Size	1.4"L x 1"W x 0.4"H (35 x 25.4 x 11 mm)
