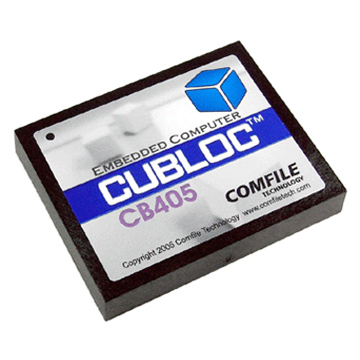

CB405 Cubloc Core Module - Basic with Ladder Logic Controller

Manufacturer: Comfile

CUBLOC CORE MODULE
BASIC with Ladder Logic Industrial Controller

Ideal for apps requiring large number of I/O ports.
Ideal for apps requiring data memory back-up during power-down.Ideal for apps requiring large data memory. (e.g. Modbus RTU Master mode)
Ideal for small to mass production (1 to 1000+), Embeddable in customized PCB
MODBUS ASCII (Master & Slave Mode) Support
MODBUS RTU (Master & Slave Mode) Support
External Peripherals CuNET (I2C) included.
External Peripherals SPI included.
Develop using CublocStudio in BASIC and/or Ladder Logic Language.

Processor	CUBLOC CB405
Microprocessor	Atmega2560 @ 18.432Mhz
Program Memory (Flash)	200KB
Data Memory (RAM)	51KB(BASIC) + 4KB(Ladder Logic) + 55KB(Heap Memory)
EEPROM	4KB EEPROM
Program Speed	~36,000 instructions/sec
General Purpose I/O	64 I/O lines (5V TTL) (input/output configurable)
Serial Ports for Communication	- 4 High-speed hardware-independent serial ports - Configurable Baud rates: 2400bps to 230,400 bps
Analog Inputs	16 channel 10-bit ADCs
Analog Outputs	- 12 Channel 16-bit PWMs (DACs) - Configurable Frequency: 35hz to 1.5Mhz
External Interrupts	4 Channels
High Speed Counters	2 Channel 32-bit Counters (up to 2Mhz)
Power	5V, 50mA (ports unloaded)
RTC (Real Time Clock)	No
Timers	- 1 User Configurable Timer - Configurable Interval Units = 10ms
Data Memory Back-up	Yes, a rechargable Super-Capacitor or Battery may be required.
Operating Temperature	-40 °C to 120 °C
Package	80-pin Module
Size	2.4"L x 1.9"W x 0.5"H (59.4 x 47.8 x 13 mm)

SUBJECT	FILE NAME	FILE SIZE
CUBLOC Manual CUBLOC Manual + Application Note	cubloctouchmanual.pdf	8.2M
CUBLOC Application Notes 1	e-applicationnotes1.pdf	1M
