Embedded Comp. Cubloc CB280 Starter Kit

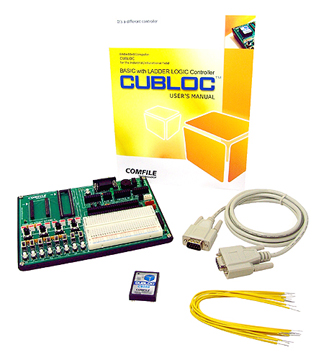

Included : CUBLOC CORE MODULE CB280 + CUBLOC STUDY BOARD[1] + RS232Cable + Manual + CD

A power supply is NOT included with this kit (Need 9~24V DC power supply w/ at least 200mA)

The CB280 has ability to control and monitor switches, timers, motors, sensors, relays, valves, and etc...

The best part is that programming may be performed in the CUBLOC BASIC Ladder Logic language.CUBLOC BASIC is very similar to most other BASIC chips and Ladder Logic is very similar to the industry PLC standards with a quick learning curve.

Whether you are a 7 year old child or a 80 year old man,you can still learn CUBLOC BASIC within hours!

Features

• BASIC & LADDER Multi-tasking
• 80KB Flash Memory for Programming
• Execution Speed 36000 Instr./sec
• 2KB BASIC SRAM
• 1KB LADDER SRAM
• 4KB EEPROM Memory
• 49 I/O Ports- 8 Channel 10 bit ADC
• 6 Channel 10~16 bit PWM (DAC)
• 4 External Interrupt Ports
• 2 Channel 16 bit High Speed Counters
• MODBUS (ASCII Mode: Master & Slave) Support
• MODBUS (RTU MODE: Master) Support
• RS232 2 Channel
• External Peripherals CuNET (I2C) included
• External Peripherals SPI included
• Embeddable in customized PCB (DIP, 64pin)
• Size (W,H,D) : 1.4"L x 1"Wx 0.4"H (35 x 25.4 x 11 mm)
