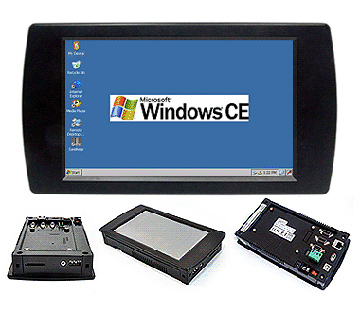

CUWIN3200A 7" Windows CE Based Touch Controller

Manufacturer: Comfile

Windows CE Touch Controller

CE, FCC, and KCC certified and an upgraded case

[Window CE 5.0 Pro]

Environment	Programming Language
Visual Studio 2005/2008	Visaul C#
	VB .NET
	Visaul C/C++ (MFC/WIN32API)
eVC++	Visaul C/C++ (MFC/WIN32API)
Catalog	Core	Pro
ATL	YES	YES
COM & DCOM	YES	YES
.NET CF 1.0 & 2.0	YES	YES
Active Sync	YES	YES
File Server	YES	YES
EDB Database	YES	YES
Remote Desktop	NO	YES
TCP/IP	YES	YES
XML	YES	YES
Simple Network Time Protocol	YES	YES
Windows Media Player	NO	NO
CryptoAPI 2.0	YES	YES
AYGShell API	NO	YES
IE 6.0	YES	YES
CU-Component	YES	YES

"Media Players: CEPlayer (default) or TCPMP (by request)"
"SQL Server CE provided"

MCU	32Bit RISC CPU(ARM920T Core) - 266MHz
Memory	SDRAM: 64MB (OS Image: 32MB / User: 32MB) NAND Flash: 64MB(OS Image: 32MB / User: 32MB) NOR Flash: 1MB(BootLoader)
LCD	TFT LCD(260,000 Color) 7 Inch (800x480) 300cd/㎡
Backlight	LED Backlight (ON/OFF switchable)
Ethernet	10Base-T(1Port)
Touch	4 wire resistive panel
RTC	MCU-embedded RTC (Battery replaceable) * The accuracy of the RTC depends on circumstances.
Audio	<0.8W Micro speaker embedded Stereo audio output (Ø3.5 Audio Jack)
USB	Host 1Port Device 1Port (Support USB Storage/WiFi)
Serial	COM1 (RS232C/RS485 switchable) COM2 (RS232C) COM3 (RS232C)
SDCARD	Support external SD CARD(4GB byte)
Input Power	DC12V ~ 24V
Power Consumption	<6W (0.5A@12V)
MAX. Current	500mA
Dimension(mm)	216(H) x 120(V) x 41(D)
Weight	450g
Operating Temperature	0℃ ~ 70℃

SUBJECT	FILE NAME	FILE SIZE
CUWIN Manual	eng_cuwinmanual.pdf	2M
CUWIN-A series Hardware Manual	eng_cuwin_hwmanual.pdf	1.16M
