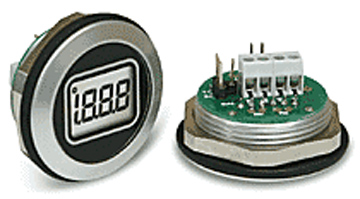

EM32-1B 3 1/2 Digit LCD Voltmeter

Manufacturer: Lascar Electronics

Price: $57.24

EM32-1B

8mm (0.31") Digit Height

200mV Full Scale Reading

3.5 to 6.5V or 7.5 to 14V Supply

32.5mm (1.28") Dia. Cut-out

IP67 / NEMA 4X Protection

The EM32-1B is a 3½ digit LCD voltmeter which is designed to be panel mounted into a 32.5mm (1.28") diameter cut-out. The module features a metal bezel and rubber seal providing IP67/NEMA 4X protection to the front of the module when fitted into a panel and secured with the nut provided. The meter features 8mm digit height, selectable decimal points, auto-polarity, auto-zero, 200mV full scale reading and a very low current consumption. This product is designed so no soldering is required. Connection is via screw terminals, and options are selected via jumper links.

This is a popular part, normally stocked in high quantity and suitable for new designs.

Specification		Min.	Typ.	Max.	Unit
Accuracy (overall error) *			0.1		% (±1 count)
Linearity				±1	count
Sample rate			2.5		samples/sec
Operating temperature range		0		50	°C
Temperature stability			100		ppm/°C
Supply voltage (V+ to V-)	L1 in default configuration	3.5	5.0	6.5**	V d.c.
Supply voltage (V+ to V-)	L1 re-configured	7.5	9.0	14.0**	V d.c.
Supply current	L1 in default configuration		500		uA
Supply current	L1 re-configured		150		uA
Input leakage current (Vin = 0V)			1	10	pA

* To ensure maximum accuracy, re-calibrate periodically
** Operation of the meter beyond maximum supply voltage rating may cause permanent damage to the meter.

Datasheet
