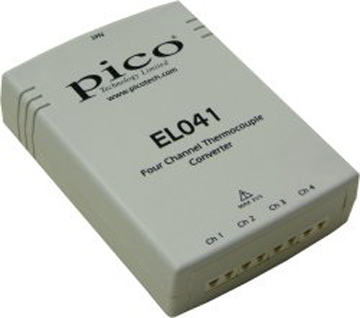

4 Channel Temperature Converter (PP217)

Manufacturer: Pico Technology

Price: $307.34

The 4 channel EL041 thermocouple converter is designed to measure a wide range of temperatures with any thermocouple that uses a miniature size thermocouple connector.

Featuring built-in cold junction compensation (CJC), the EL041 has an effective temperature range of -270 to 1820°C (The actual temperature range depends on the thermocouple being used.)

In addition to temperature measurement, the cold junction compensation can be switched off to enable the EL041 to measure ±60mV signals.

Note: The EL041 is designed to work only with the EL005 logger.

Number of Channels	4
Thermocouples Supported	B, E, J, K, N, R, S, T or mV
Voltage Input Range	±60 mV
Resolution	15 bits + sign
Accuracy	Thermocouples: ±(0.5 °C + 0.3 % of type K reading) Millivolts: ±0.3 %
Conversion Time	1 second
Overload Protection	±10 V
Input Connector	Mini-thermocouple plugs
PC Connector	via EnviroMon network
Operating Temperature	0 to 70 °C (20 to 30 °C for quoted accuracy
Operating Humidity	25 to 75 %RH
