| FCC model for US |
RTR-501/501L |
RTR-502/502L |

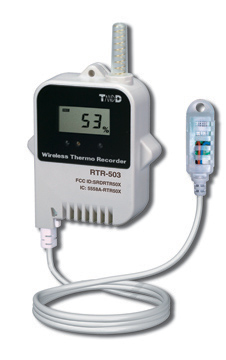

RTR-503/503L |
| Measurement Channel |
1Temperature Channel |
1 Temperature Channel |
1Temperature and
1 Humidity Channel |
| Sensor |
Internal Temp. Sensor |
External Temp. Sensor (TR-5106) |
External Temp. and
Humidity Sensor
(TR-3310) |
| Thermal Time Constant |
15 minutes
L Type: 25 minutes |
Approx. 15 Sec. (in air)
Approx. 2 Sec.
(in agitated water) |
- |
| Sensor Response Time |
- |
- |
About 7 min.
(90% response) |
| Measurement Range |
- 40 to 80 °C |
- 60 to 155 °C |
0 to 55 °C
10 to 95%RH |
| Measurement Accuracy |
Avg±0.5°C |
Avg±0.3°C
(-20 to 80°C)
Avg±0.5°C
(-40 to -20°C / 80 to 110°C)
Avg±1.0°C
(-60 to -40°C / 110 to 155°C) |
Avg±0.3°C
±5%RH
(at 25°C and 50%RH) |
| Measurement Display Resolution |
0.1°C |
0.1°C |
0.1°C / 1%RH |
| Recording Interval |
1,2,5,10,15,20,30 seconds / 1,2,5,10,15,20,30,60 minutes
Total of 15 choices |
| Recording Capacity |
16,000 Readings x 1 Channel |
8,000 Readings x 2 Channnels |
| Recording Mode |
Endless : Overwrite oldest data when capacity is full
One-time: Stop recording when capacity is full |
| LCD Display Items |
Current Readings / Recording Settings / Battery Life Warning /
Over Measurement Range Warning / Amount of Recorded Data |
| Power |
Lithium Battery (LS14250 (SAFT)) x 1
for L type: Large Capacity Battery Adaptor Kit (RTR-500B1) x 1 (*1)
External Power Adaptor Kit (RTR-500A1) (sold separately) |
| Battery Life (*2) |
Approx. 10 months
L Type: Approx. 4 years |
| Wireless Specifications |
FCC Part15 Section247 / IC RSS-210 (Frequency Range: 902 to 928MHz) |
| Transmission Range |
Approx. 150m(500ft)(May vary with conditions) |
| Interface |
Wireless Communication / Optical Communication |
| Communication Speed |
Collection of a full unit of data:
Wireless communication : about 2 minutes(*3)
Optical communication : about 160 seconds |
| Water Resistance |
IP67
(immersion proof) |
IP64 (*4)
(rated for use in daily life) |
| Dimensions |
H62mm x W 47mm x D19mm
L Type: with Large Capacity Battery Pack: D 46.5mm
(excluding protrusions / antenna length 24mm) |
| Weight |
Approx. 56g (including 1 lithium battery)
L Type: with Large Capacity Battery Pack: Approx. 109g |
| Unit Temp. Resistance |
-30 to 80°C ( Unit temp resistance and measurement range is -40 to 80°C but wireless communication cannot occur in an environment of less than -30°C ) |
| Others |
In order to download data via wireless communication, it is necessary to purchase Base Unit. |
(*1) When using RTR-500B1 it is necessary to purchase Lithium Battery (LS26500). For details, contact your local authorized distributor.
(*2) The stated battery life is for when it is used in an environment of 25¢ªC (77¢ªF) and recorded data is downloaded at a rate of once a day or "Monitoring Current Readings" occurs at a rate of once every 10 minutes. Battery life depends on measurement environment, recording interval and battery performance.
(*3)The same amount of time will be necessary for each added Repeater.
(*4) The stated water resistance rating is for when the sensor is connected to the unit. However, this does not include the sensor areas for the RTR-503/503L models. Not for continued immersion. |
