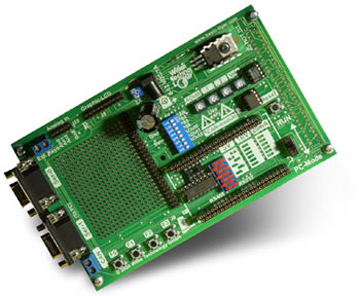

CAN-Bus Prototyping Board (BTI-CAN-BOARD)

Limited stock available.

Prototyping Board for quick solutions without board development.

Schematic (PDF)

• 1 socket for CAN-Bus Tiger computer
• 50-pin extension connector
• 2 serial ports with DB9 connector
• 1x RS232, 1x RS232/RS485
• 1x connector for text/graphic LCD T6369, formats: 32x32...240x128 pixel
• 4 buttons on board, connector for additional keys/buttons/switches

Features

• 3 configurable analog inputs: 0...5V, 0...10V, 0...20mA
• CAN-Bus connection with terminal screws, addable bus termination
• Patch area ca. 55 x 45 mm
• Power supply: 8-12 VDC / 100mA
• VG-64 connector can be assembled
• Reset button, PC-Mode switch for on board downloads
