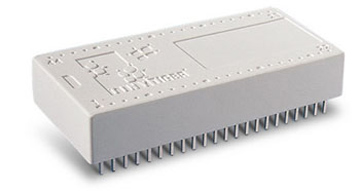

Embedded Multi-tasking Computer Module (TTI-TCN-4/16)

Manufacturer: Wilke

This product has been discontinued.

Limited stock available.

Computer modules of the BASIC-Tiger™ family in smaller size.

ca. 28 x 60 x 11 mm, 44-pin, ca. 28g
36 universal I/O lines
512 KB SRAM, up to 2 MB FLASH
Realtime clock (TCN modules) with alarm / wakeup output, backup battery input
4 AD channels: Vref external (3.5...5V)
2 PWM outputs (6, 7 or 8 bit)
4.7...5.5V / 50mA
Operating temperature: -20°C...+80°C

TINY-Tiger™, the smaller version of the BASIC-Tiger™. Full multitasking power, the same comfort in programming, source level debugging and updating as well as many universal I/Os characterize this module series at a 40% smaller size. TINY Tigers™ are successfully used in consumer and series products as well as in projects where space is limited.

With memory capacities of 512 kByte and 2 MByte FLASH and 32, 128 and 512 kByte SRAM this module series can be used for all kinds of projects - small, medium and large. Ther 2 MByte FLASH version offers enough space for thousands of BASIC codelines and large data areas if needed. Here constant data fields like tables, graphics, sounds etc. can be loaded, which are generated on compilation resp. are loaded from databases, but also dynamical use of these free FLASH blocks is possible.

With a guaranteed 100,000 erase cycles for every FLASH block datalogger functions can be realized very efficient without external memory and without battery backup. This does not only lead to very low priced products, but also to very reliable and long-lived: No backup battery = no change of battery, no self-discharge, no ageing, no limitation of the temperature range.

TINY-Tigers™ are used in all industries and supervise, measure, control and regulate instruments, machines and large installations. Here are some products with "TINY-Tiger™ inside":

Device for stringing tennis rackets
Speed laser gun
Land-surveying device
Depth control in big dredgers
Car info system
Control of service water plants
Automated wet docking system
Satellite controlled alarm system
Building / floor controller for facility management systems

The TINY-Tigers™ have the all the advantages of the complete BASIC-Tiger™ family:

Highly stable multitasking system
Fast running code
Comfortable drivers and functions
Shortest development times
In-field updates
Simple expansion and maintenance of comprehensive projects
Booting in a fraction of a second

Furthermore:

No royalties
No costs for runtime libraries or operating system
Free support
Free updates and drivers
Free technical support for all software and hardware questions

Datasheet (PDF)
