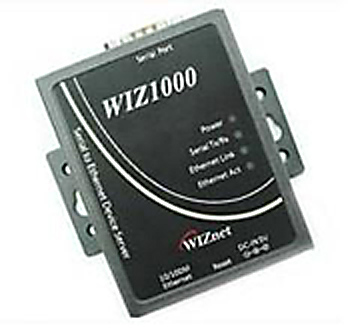

WIZ1000 Ethernet Device Server

Manufacturer: Wiznet

Features

Specifications

Architecture	TCP / IP	W5100
	PHY	Included in W5100
	Serial	RS-232C
	MCU	GC89L591A0-MQ44I (fast 80C52 compatible) - Internal 62K Bytes in-system programmable(ISP) flash, 16K SRAM, 2K EEPROM
Network	Interface	RS232C(DB9 Connector)
	Signals	TXD, RXD, RTS, CTS, GND
	Parameters	TParity : None, Even, Odd Data bits : 7,8 Flow Control : None, RTS/CTS, XON/XOFF
	Speed	Up to 230Kbps
Dimensions		75mm X 45mm (PCB width X length)
Connector type		2mm Pitch 12 pins, 55mm X 40mm
Input Voltage		DC 5V
Power Consumption		Under 200mA
Temperature		0° C ~ 80° C (Operating), -40° C ~ 85° C (Storage)
Humidity		10~90%
