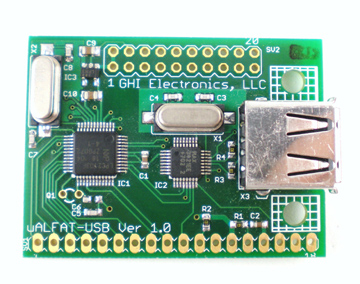

uALFAT-USB OEM Board for uAlfat™ IC + USB Host

• Based on ALFAT chip.
• On board MAX3421 USB host controller.
• Fully built and tested.
• Standard .1" holes for header for user interface.
• USB host connector.
• 5V tolerant I/Os.
• Supports both, USB memory and SD/MMC cards.
• Pin-out for SD card.
• Pin-out compatible with ALFAT-SD.
• Requires regulated 3.3V for operating and 5V for USB devices.
• 32Khz crystal is not populated.
