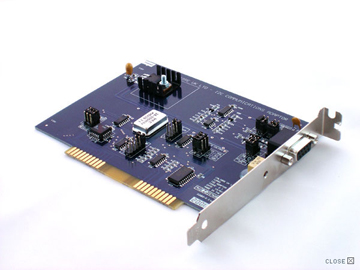

Calibre ICA90/C ISA-card I2C-Bus communications adapter for 5V

Manufacturer: Calibre

Price: $299.00

Note: The OPTIONAL ICA90 drivers and the OPTIONAL WINI2C software packages are NOT compatible with Win2K or WinXP. For Win2K/XP users, PCI90 or UCA93LV are the recommended alternative products.

The original I2C Communications Adapter to plug into your PC is available now from Calibre UK Ltd. The ICA90 is in use by many major electronics companies throughout UK, Europe, USA and the Far East.

The package supplied includes the half-length IBM PC compatible card, a comprehensive user manual, sample software routines and source code functions in C and TurboBASIC for all I2C-bus operations as well as set-up and status checking routines. A real-time bus monitor program, is also supplied. 16-bit Windows DLLs for programmers using Microsoft C++ or Visual Basic are included as standard.

Features

• True I2C Compatibility
• Operates as Master, Slave or Real-Time Monitor
• Fits any PC, AT or ISA/EISA bus computer
• Software Function Libraries & User Manual included
• I2C Configuration through software
• Link selection of I/O Addresses
• I2C Connection via 9 way D socket
• 5V Power output to run external devices under test
• WINI2C/ICA application software available as an optional extra

This half-length card supports the full I2C communications protocol and plugs into any available I/O slot in your PC. Based around the Philips PCF8584 I2C Bus Controller it will work with any IBM compatible ISA/EISA bus computer. PC I/O base address is selectable in the range 310 to 31E (hexadecimal). The adapter occupies this base address and the next address up. Bus termination, protection and hardware interrupt line (usage is optional) are all link selectable while I2C configuration and all other functions are software controllable.

All I2C features are available under software control including data transmission mode (master/slave, transmitter/receiver), own slave address and SCL clock speed when operating as a master (1.5/11/45/90KHz). Both polled and interrupt driven modes can be supported, making programming in popular languages easy. A "transparent" real-time bus monitor program is also provided. The ICA90 fully supports multi-master operation and associated bus arbitration.

Datasheet for the ICA90.
