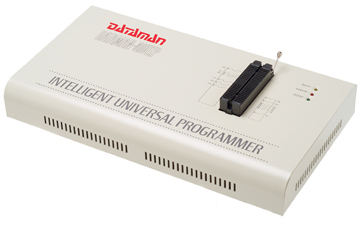

Dataman 48UXP Universal Programmer

Manufacturer: Dataman

Price: $1,289.50

Universal 48-pin chip programmer with USB 2.0 and parallel connectivity. Dataman 48UXP features intelligent hardware, including microprocessor and FPGA, allowing it to program devices you use today and the devices of tomorrow.

Optimized for both laboratory and production the Dataman 48UXP is intelligent, fast and easy to use.

General

The Dataman 48UXP's on-board intelligence reduces system overhead to a minimum. This gives a 100% performance increase over its predecessor when programming high-density flash devices e.g. Intel 32 Mbit flash chip in less then 60 seconds
The Dataman 48UXP performs device insertion and contact checks before programming each device. It can detect poor pin contact and devices inserted upside down or in the wrong position preventing expensive chip damage due to operator error
The Dataman 48UXP's universal pin driver capability lets it program all 48-Pin DIL devices, including all single-chip Micro-controllers, without DIL-to-DIL adapters
The Dataman 48UXP has additional safety features such as a built-in current limit and pin continuity check function. This prevents damage from faulty chips during the programming cycle
Included with the Dataman 48UXP is a 44-Pin universal adapter that enables you to support 44-Pin chips such as EPLD, EPROM, Flash, EPLD and Micro-controllers, eliminating the need to buy multiple adapters
The Dataman 48UXP supports 2.0V ~ 5.0V logic level input/output and can supply 2.0V ~ 21V analogue voltages such as VCC. Low voltage support (1.8V) is also possible by a low voltage adapter

Base Unit (DAC)

USB 2.0 port
FPGA based IEEE 1284 slave printer port, up to 1MB/s transfer rate
On-board intelligence: powerful microprocessor and FPGA based state machine
Power: 100 to 240 VAC, auto-switching
Frequent range: 47 to 63 Hz
Power consumption: 25 W
Operating temperature: 5 to 45°C (41 to 113°F)
CE & LVD certified

ZIF Socket

48-pin DIL/ZIF socket with receptacle for 8-Pin to 48-Pin 300/ 600-mil devices
Four DACs for Vcc, Vpp1, Vpp2 and Vpp3 with 8-bit resolution. Software controllable rises time and current limit protection.
Logic driver supports pull-up/ pull-down or high impedance on all 48 pins with 2.0V-5V level

User Interface

Many EPROM and Flash memories have a build-in device ID and manufacturer ID. The Dataman 48UXP can read the device's ID by press hot key to detect the ID and compare its database and determined the chip's correct vendor and product number. This feature is especially useful with second-hand chips and devices that have had their part number accidentally removed
To meet mass-production requirements the Dataman 48UXP has implemented new patented technology in both its hardware and software. After entering the Mass-production Mode, the production line operator inserts a device into the ZIF socket. An LED on the Dataman 48UXP indicates the device is ready and the operator simply removes it and replaces it with a new one. The Dataman 48UXP's auto-sensing feature ensures the device has been inserted correctly and then automatically programs the device.
In the mass-production mode the system keyboard is automatically disabled preventing the operator from making any inadvertent mistakes and with no formal training necessary adds flexibility, saves time and money
User can create and save a project file which contains device selection, buffer data and all the programming set-up options. This project file can then be loaded for future use reducing set-up times
The Dataman 48UXP has an Auto Increment function which simply increments the serial numbers in the buffer each time a new device is inserted, saving time and money
User-selectable verify voltage with one or two-pass verification. This feature ensures that your device has been programmed properly, preventing failures due to programming errors and ensuring data retention
Accepts JEDEC test vectors up to 48 pins
Automatic file format detection and conversion: JEDEC, POF, Binary, Intel HEX, Intel EXT HEX, Motorola S, HP 64000ABS, Straight Hex and TEKTRONIC Hex

Device Support

The Dataman 48UXP supports over 32,000 of the most popular devices in use today – with future devices being added every day. Dataman 48UXP coverage includes the following device types:

ZIF socket

BI-PROM
EPROM
EEPROM
EPLD
CEPAL
CDLD
CPAL
CPLD
GAL
Flash
FPGA
MACH
MROM
NVRAM
PAL
PEEL
PLD
PROM
SPLD
Microcontrollers
