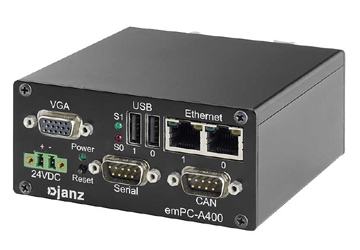

CANmidiBOX Fanless Intelligent WinCE CANbus Controller

CANmidiBOX™ – based on Janz AG’s emPC-A400 – is a versatile, compact embedded control system particularly suited to embedded CANbus control applications.

Technical Details:

Processor/Memory

• Intel Xscale IXP420 with 400 MHz
• system memory 64 MB SD-RAM (optionally up to up to 128 MB)
• 512 MB internal storage medium Compact Flash socket, Type I/II

Interfaces

• dual 10/100 MBit/s Ethernet on front panel
• dual USB (v2.0), with 500mA power supply capability
• SJA 1000 CAN Controller

Front Panel Connectors

• dual 9-pin D-SUB connectors for one CAN and one serial RS232 port
• receptacle for power supply
• Reset push button
• power supply status LED

Power Supply

• input 9..32V_DC
• power consumption max. 7W

Physical

• ambient operating temperature: 0°C … 50°C
• optionally extended temperature range -30°C... 70°C
• non-operating temperature: -20°C … 75°C
• humidity 0% ~ 80%, non-condensing
• dimensions (w x h x d): 4.1” x 1.9” x 4.1”
• weight approx. 0.5 kg (1.1 lb)

Supported Operating System

• Windows CE 5.0

Description:

Using high-reliability components, a wide variety of hardware and software options are available in the tiny Intel ARM-based 400MHz CANmidiBOX™. 64 MB SD-RAM is sufficient to control Windows CE operating systems, while 512 MB CompactFlash card storage can easily be upgraded. Power consumption is low, so reliable cooling is completely passive. DIN-rail-mounted, CANmidiBOX™ can be placed almost anywhere, even in the tightest locations. With standard interfaces of 10/100BaseT Ethernet, USB2.0, RS232, VGA and one CANbus, this versatile controller system has remarkably small dimensions. The widely-used embedded operating system Windows CE 5.0 comes standard, while other choices are possible and can be selected to perfectly match customer needs. Every CANmidiBOX™ system is 100% tested and is customizable even in small quantities, with a guaranteed lifetime availability of 5 years – essential for medical and military equipment design. A wide range of operating systems is offered, with design-team hardware and software support. If required, customer-specific software can be preloaded.
