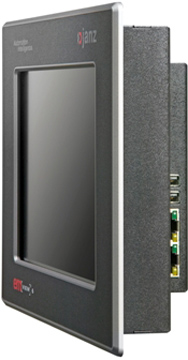

CANdisplayBOX-M8 Fanless, Flexible Windows-based CANbus Controller w/8.4" Display

CANdisplayBOX™ – based on Janz AG’s emVIEW™ Series – is a versatile, compact embedded control system particularly suited to embedded CANbus control applications.

Technical Details

Display

• 8.4” SVGA TFT LCD display
• LED backlight (MTBF ~ 80,000hrs.)
• resolution 800 x 600
• contrast ratio 250:1
• luminance 400 cd/m²
• resistive touchscreen

Processor/Memory

• Intel Xscale IXP420 with 400 MHz
• system memory 64 MB SD-RAM
• internal storage medium Compact Flash socket, Type I/II

Interfaces

• dual 10/100 MBit/s Ethernet on front panel
• dual USB (v2.0), with 500mA power supply capability
• SJA 1000 CAN Controller

Power Supply

• input 14 … 32V_DC
• power consumption max. 7W

Physical

• ambient operating temperature: 0°C … 50°C
• non-operating temperature: -20°C … 75°C
• humidity 0% ~ 80%, non-condensing
• dimensions of complete CANdisplayBOX-M8^TM
  (w x h x d): 9.2” x 7.5” x 2.2”
  display cut-out dimensions (w x h) 8.5” x 6.7”
• weight approx. 3.2 kg (7.0 lb)

Supported Operating System

• Windows CE 5.0

Description:

Additionally these computing systems have integrated displays with touchscreen. Using high-reliability components, a wide variety of hardware and software options are available in the tiny ARM based CANdisplay-BOX™. Display dimensions start at 6.5”, other displays with up to 15.0” are optionally available. 64 MB SD-RAM is sufficient to control Windows CE operating systems, while 512 MB industrial grade CompactFlash card storage can easily be upgraded. Power consumption is low, so reliable cooling is completely passive. With standard interfaces of two 10/100BaseT Ethernet, two USB2.0, one RS232 and one CANbus, this versatile controller system has remarkably small dimensions.
The widely-used embedded operating system Windows CE 5.0 comes standard, while other choices are possible and can be selected to perfectly match customer needs. Every CANdisplayBOX™ system is 100% tested and is customizable even in small quantities, with a guaranteed lifetime availability of 5 years – essential for medical and military equipment design. A wide range of operating systems is offered, with design-team hardware and software support. If required, customer-specific software can be preloaded.
